Node FPGA Images: Identification Table



Vendor
Node Name
Runtime
Image File
Boot
Image File
ID Number
(vend-prod-opt)
Comments
AMC
DigiFlex®
See AMC N/A 0001 A001 0000
Glentek
Omega
C0FE0019 C0FEB014 0006 0001 0000 24KHz
Glentek
Omega
C0FE0019 C0FEB014 0006 0001 0001 24KHz Interpolator
Glentek
Omega
C0FE0019 C0FEB014 0006 0001 0002 24KHz Jigger
Glentek
Omega
C0FE0019 C0FEB014 0006 0001 0003 24KHz Interpolator, Jigger
Glentek
Omega
C0FE0019 C0FEB014 0006 0001 0004 16KHz
Glentek
Omega
C0FE0019 C0FEB014 0006 0001 0005 16KHz Interpolator
Glentek
Omega
C0FE0019 C0FEB014 0006 0001 0006 12KHz
Glentek
Omega
C0FE0019 C0FEB014 0006 0001 0007 12KHz Interpolator
Max-RMB
C0FE0037 C0FEB028 000C 0001 0000
Kollmorgen
CD
C0FE0027 C0FEB014 0003 0010 0000
Kollmorgen
CD
C0FE0034 C0FEB014 0003 0010 0000 CD + Pulse
Kollmorgen
DASA
C0FE0024 C0FEB014 0003 0001 0000
Kollmorgen
PicoDAD
C0FE0035 C0FEB014 0003 0020 0000 Probe supported
Compare not supported
Kollmorgen
PicoDAD
C0FE003C C0FEB014 0003 0020 0000 Probe not supported
Compare supported
Currently not supported
Kollmorgen
sqStep2/2
C0FE0038 C0FEB029 0003 0040 0001
Kollmorgen
sqStep4
C0FE0038 C0FEB029 0003 0040 0000
Kollmorgen
sqDC2
C0FE003D C0FEB029 0003 0040 0003
Kollmorgen
sqDC4
C0FE003D C0FEB029 0003 0040 0002
Kollmorgen
S200
C0FE0036 C0FEB027 0003 0030 0000
Kollmorgen
S300
C0FE0019 C0FEB014 0003 0060 0000 Supported since the 03.04.00
Kollmorgen
S600
C0FE0019 C0FEB014 0003 0050 0000 Supported since the 03.04.00
Kollmorgen
S1800
C0FE003E C0FEB027 0003 0070 0000
Kollmorgen
S1800
C0FE003E C0FEB027 0003 0070 0001
Kollmorgen
S1800
C0FE003E C0FEB027 0003 0070 0002
Kollmorgen
S1800
C0FE003E C0FEB027 0003 0070 0003
Kollmorgen
S1800
C0FE003E C0FEB027 0003 0070 0004
Kollmorgen
S1800
C0FE003E C0FEB027 0003 0070 0005
Kollmorgen
S1800
C0FE003E C0FEB027 0003 0070 0006
MEI
RMB-10V

C0FE0021

C0FEB011
C0FE A001 0000 4 motors, XC2S200
MEI
RMB-10V

C0FE0011

C0FEB021
C0FE A001 0000 2 motors, XC2S150
MEI
RMB

C0FE0026

C0FEB011
C0FE A001 0000
MEI
RMB-10V2

C0FE0029

C0FEB022 C0FE A001 0000
MEI
RMB-10V2-SSI

C0FE002C

C0FEB022 C0FE A001 0000
MEI
RMB-10V2-Probe

C0FE0033

C0FEB022 C0FE A001 0000
MEI
RMB-10V2-Probe (4)

C0FE0039

C0FEB022 C0FE A001 0000
MEI
RMB-SGDG
C0FE002B C0FEB024 C0FE A001 0004 DEMO ONLY
MEI
SLICE-I/O
C0FE0032 C0FEB028 C0FE A006 0000
MEI
SQID
C0FE0030 C0FEB014 C0FE A005 0000
MEI
SQID 300
C0FE003A C0FEB02A C0FE A005 0001
Panasonic
Minas-B
C0FE0014 C0FEB012 0005 0001 0000 DEMO ONLY
Sanyo Denki
Q Series
C0FE0019 C0FEB014 0007 0001 0000
Sanyo Denki
R Series
C0FE0019 C0FEB014 0007 0001 0001
Soonhan
IO2K-SQA2
C0FE002F C0FEB026 000A 0001 000A
Soonhan
IO2K-SQA2S
C0FE002F C0FEB026 000A 0001 000B
Soonhan
IO2K-SQP2
C0FE002F C0FEB026 000A 0001 000C
Soonhan
IO2K-SQP2C
C0FE002F C0FEB026 000A 0001 000D
Trust
TA801-D
C0FE002D C0FEB014 0009 0001 0000
Trust
TA801-E
C0FE002D C0FEB014 0009 0001 0001
Trust
TA801-F
C0FE002D C0FEB014 0009 0001 0002
Trust
TA802-D
C0FE002D C0FEB014 0009 0001 0003
Trust
TA802-E
C0FE002D C0FEB014 0009 0001 0004
Trust
TA802-F
C0FE002D C0FEB014 0009 0001 0005
Trust
TA805-D
C0FE002D C0FEB014 0009 0002 0006
Trust
TA805-E
C0FE002D C0FEB014 0009 0002 0007
Trust
TA805-F
C0FE002D C0FEB014 0009 0002 0008
Trust
TA806-D
C0FE002D C0FEB014 0009 0002 0009
Trust
TA806-E
C0FE002D C0FEB014 0009 0002 000A
Trust
TA806-F
C0FE002D C0FEB014 0009 0002 000B
Trust
TA806-G
C0FE002D C0FEB014 0009 0002 000E
Trust
TA807-D
C0FE002D C0FEB014 0009 0002 000C
Trust
TA807-E
C0FE002D C0FEB014 0009 0002 000D
Yaskawa
JUSP 01EX3A1-FK
C0FE0018 C0FEB014 0002 0001 0001
Yaskawa
JUSP 01EX4A1-FK
C0FE0018 C0FEB014 0002 0001 0000
Yaskawa
SGDS-xxx70A

C0FE0019

C0FEB014 0002 0010 0002
Yaskawa
SGDS-xxx71A

C0FE0019

C0FEB014 0002 0010 0000
Yaskawa
SGDS-xxx72A

C0FE0019

C0FEB014 0002 0010 0001
Yaskawa
SGDS-xxx75A

C0FE0019

C0FEB014 0002 0010 0003
Yaskawa
SGDZ-BS 60AN7A-FK

C0FE0031

C0FEB027 0002 0020 0000
Yaskawa
SGDZ-BS 70AN7A-FK

C0FE0031

C0FEB027 0002 0020 0001
Yaskawa
SGDZ-MD 10EN7A

C0FE002E

C0FEB027 0002 0001 0005
Yaskawa
SGDZ-MD 11EN7A

C0FE002E

C0FEB027 0002 0001 0009
Yaskawa
SGDZ-MD 20EN7A

C0FE003F

C0FEB027 0002 0001 0004
Yaskawa
SGDZ-MD 21EN7A

C0FE003F

C0FEB027 0002 0001 0007
Yaskawa
SGDZ-MD 22EN7A

C0FE003F

C0FEB027 0002 0001 0006
Yaskawa
SGDZ-MD 30EN7A

C0FE002E

C0FEB027 0002 0001 0003
Yaskawa
SGDZ-MD 31EN7A

C0FE002E

C0FEB027 0002 0001 0008
Yaskawa
SGDZ-MD 40EN7A

C0FE002E

C0FEB027 0002 0001 0002
** COFE0028 is no longer supported for the Sigma3-71.



Downloading the Node FPGA

For SynqNet Phase 1

Open a Command Prompt window and go to the following directory to download the proper *.sff file: C:\MEI\XMP\bin\WinNT\rmbFlash -rmb 0 -file ..\c0fe0001_20020430.sff

The selected FPGA file has been downloaded after all of the pages have been counted.

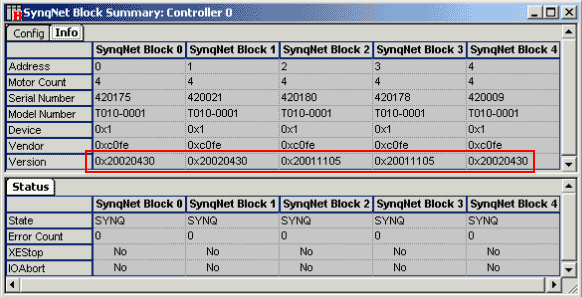

Refresh Motion Console by maximizing the screen. The following screen should appear. Notice that the Version IDs have changed to reflect the version of the downloaded FPGA.



For SynqNet Phase 2

Please refer to the sqNodeFlash Utility.
