SynqNet Motion Controller:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
XMP-SynqNet-CPCI-uD PN: T011-0003; T111-0003* |
 |
XMP-SynqNet-CPCI-RJ-CAN PN: T011-0004; T111-0004* |
 |
XMP-SynqNet-CPCI-NM
PN: T100-0001; T125-0001* |
* RoHS compliant product.
See Also
UL Listing and CE Marking
|
Feature |
Parameter |
Specification |
|
Processor
|
DSP |
Analog Devices SHARC 32-bit floating point |
|
Speed |
40 MHz / 150 MFLOPS | |
|

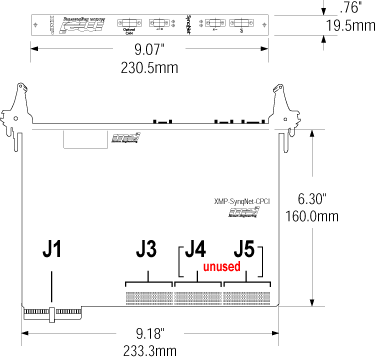

Board
Interface
(SynqNet) |
Connectors |
RJ-45 or Micro D, CAN D-9 (optional) |
|
Host
Bus |
Universal CPCI Slot | |
|
Memory
Interface |
32-bit direct memory map | |
|
User
I/O |
Lines |
6 bi-directional I/O, 1 ESTOP Input |
|
Servo
Loop
|
Update
Rate |
User programmable |
|
4
Axes Update Rate |
Max: 20 kHz | |
|
8
Axes Update Rate |
Max: 10 kHz | |
|
Kinematic
Ranges |
Position,
Velocity, Acceleration, Jerk |
32-bit floating point |
|
CAN
Network User I/O (optional) |
Protocol |
CANopen - DS401 |
Environment
|
Operating
Temp. |
0-50 degrees C |
Storage
Temp. |
0-50 degrees C | |
Humidity |
20-90% RH, non-condensing | |
Product Certifications |
UL/CE |
XMP-SynqNet-CPCI controllers are not UL/CE certified. See Also |
|
Feature |
Photo |
Pinouts |
PNs w/ Option |
|
Backplane
Bus Interface |
 |
All |
|
Assembly Option |
Photo |
Pinouts |
PNs w/ Option |
|
Micro
D |
 |
T011-0003 | |
|
RJ-45 |
 |
T011-0004 | |
|
Controller
I/O |
 |
T011-0003, T011-0004 |
|
|
CAN |
 |
T011-0004 |
