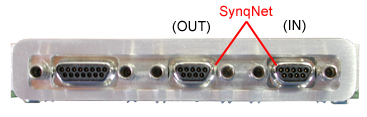

XMP-SynqNet-PMC:

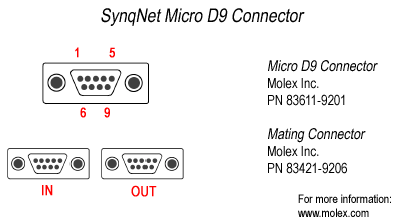

Micro D9 Connector

Pin
In
Out
Standard pinout
(NIC=MDI)
Crossover pinout
(HUB=MDI-X)
1
 Transmit + Receive +
2
 UUPI + UUPI +
3
 SHLD* SHLD*
4
 UUP2 + UUP2 +
5
 Receive + Transmit +
6
 Transmit – Receive –
7
 UUPI – UUPI –
8
 UUP2 – UUP2 –
9
 Receive – Transmit –
* Pin 3 on SynqNet nodes
are "No Connect."



Cable Accessories

There are two types of Micro-D Cables:

  • Micro D9 to Micro-D (C005-0002)
  • Micro D9 to RJ-45 (C006-0001)

Depending on the type of SynqNet controller and SynqNet Motion Block being connected, one of the following two types of cables will be used.

Micro D9 to Micro D9
PN: C005-0002

See Variations of SynqNet Cables

Micro D9 to RJ-45
PN: C006-0001

See Variations of SynqNet Cables
