XMP-SynqNet-PMC:

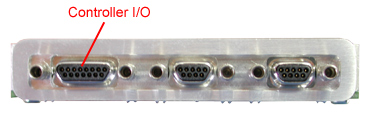

Micro D15 Connector

See Also: General Controller I/O Specifications | Connect System I/O

Pin
Signal
1
 OPTO_A
2
 OPTO_B
3
 OPTO_C
4
 OPTO_D
5
 OPTO_E
6
 OPTO_F
7
 XESTOP
8
 SFGND
9
 OPTO_A_Rtn
10
 OPTO_B_Rtn
11
 OPTO_C_Rtn
12
 OPTO_D_Rtn
13
 OPTO_E_Rtn
14
 OPTO_F_Rtn
15
 XESTOP_Rtn

Cable Accessory

MEI offers the following cable accessory: C001-0036
