Connect XMP-SynqNet Controller I/O:

E-Stop | Controller I/O

System E-Stop Input

To Pull-up Logic

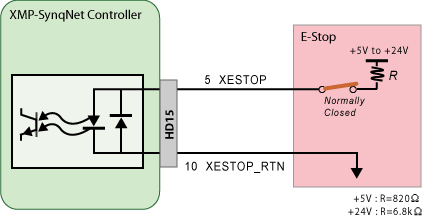

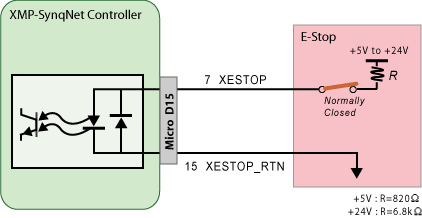

Connect E-Stop input to pull-up logic.

Micro D15 Connector
(See pinouts for this connector)

HD15 Connector
(See pinouts for this connector)



To Pull-down Logic

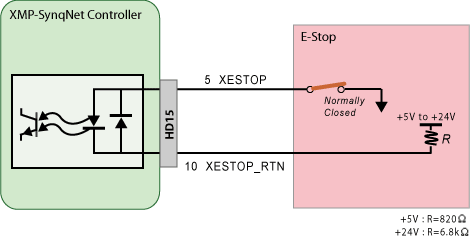

Connect E-Stop input to pull-down logic.

Micro D15 Connector
(See pinouts for this connector)

HD15 Connector
(See pinouts for this connector)



System Controller I/O

As Controller I/O Outputs

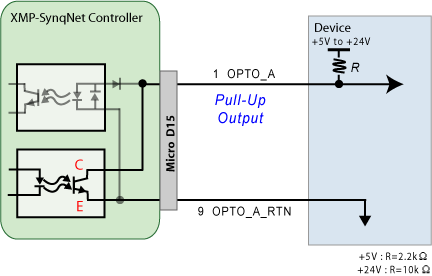

Connect Controller I/O outputs to pull-up logic.

Micro D15 Connector
(See pinouts for this connector)

HD15 Connector
(See pinouts for this connector)

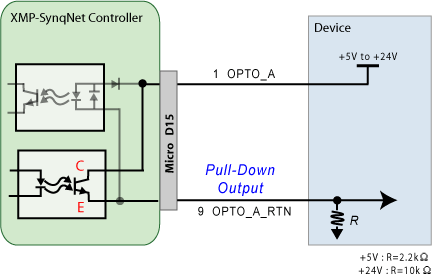

Connect Controller I/O outputs to pull-down logic.

Micro D15 Connector
(See pinouts for this connector)

HD15 Connector
(See pinouts for this connector)





Opto-isolated Controller I/O

There are 6 Controller I/O. Each Controller I/O is individually configurable as an input or output.

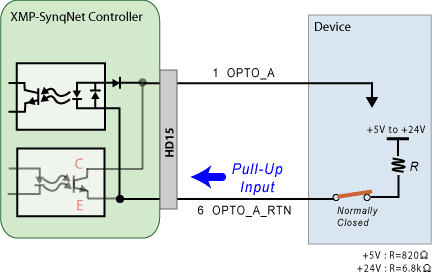

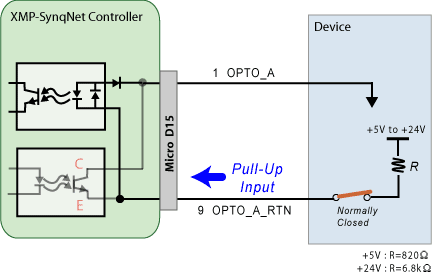

Connect Controller I/O input to pull-up logic.

Micro D15 Connector
(See pinouts for this connector)

HD15 Connector
(See pinouts for this connector)

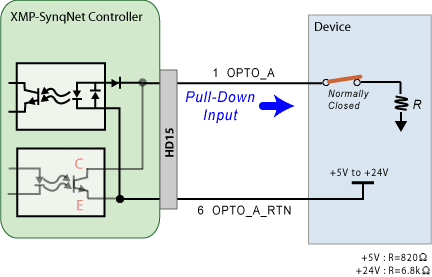

Connect Controller I/O input to pull-down logic.

Micro D15 Connector
(See pinouts for this connector)

HD15 Connector
(See pinouts for this connector)
