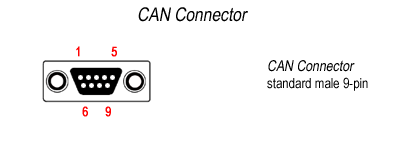

CAN D-9 Connector

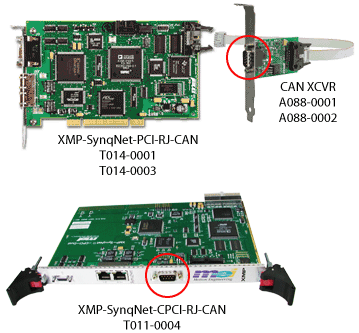

The support of CAN is an assembly option on the eXMP and XMP-SynqNet controllers. There are currently two boards that have the CAN assembly option: XMP-SynqNet-CPCI-4c-5v-CAN and XMP-SynqNet-CPCI-4c-24v-CAN.

Pin
Signal
Description
1
 (unused) Reserved
2
 CAN_L CAN_L bus line dominant low
3
 CAN_GND CAN Ground
4
 – Reserved
5
 (CAN_SHLD) Optional CAN Shield
6
 CAN_GND CAN Ground
7
 CAN_H CAN_H bus line dominant high
8
 – Reserved
9
 CAN_V+ CAN external supply*

* Used with opto-isolation mode
