SynqNet FPGA for SLICE I/O

IMPORTANT!
The appropriate FPGA must be downloaded to the SynqNet controller if you are using the SynqNet Network Adapter (TSIO-1001).

If you are using the SynqNet Network Adapter (TSIO-1001), FPGA version C0FE0032_0346.sff or newer must be installed on the controller.

The FPGA can be downloaded using Motion Console under the SqNode Summary window.

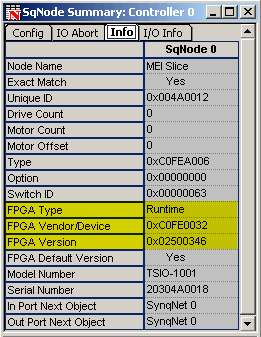

The FPGA type and version can be found under the Info tab of the SqNode Summary window.



     Example: C0FE0032_0346.sff
     FPGA Type: Runtime
     FPGA Vendor/Device ID: 0xC0FE0032
     FPGA Version: 0x02500346

See Also: FPGA Release Notes | Node FPGA Images: Features Table
