Simulink Interface

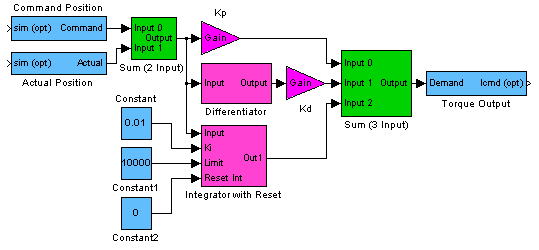

The Output of a Gain block is the Input multiplied by the gain (K).

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

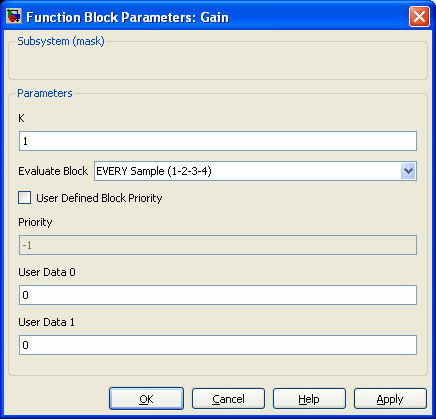

The block's update schedule is determined by the Evaluate Block. The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

class GAINBlock: public virtual Block
{
public:
	// User accessible coefficients
	double	K;
};
