Motor General Output

Overview

Overview

Description

The Motor General Output block is used to write a single bit of data from the Motor General Output memory. This memory often contains state information for general Inputs/Outputs, and varies from devices. The block is updated at the update rate, determined by the Evaluate Block.


Motor Number

The number of the motor to which to write the output. This number may be absolute or linked to the Model Number.

Bit Number Bit to be modified. Valid bit numbers are defined in MPIMotorGeneralIo.
Evaluate Block This block allows you to specify whether the block executes Every Sample, Every Other Sample (Odd or Even), or Every Fourth Sample (and specify the First, Second, Third, or Fourth). This provides greater flexibility in controlling the execution of a model and to preserve performance for other areas of motion control.
User Defined Block Priority When selected, allows you to enter a Priority Code to modify Execution Ordering of this block. For more information, see Block Execution Order and User Defined Block Priority.
Priority For an explanation of how the Priority field is used by the MechaWare Model Downloader, see Block Execution Order and User Defined Block Priority.
User Data 0 Application-specific data. See User Data Storage.
User Data 1 Application-specific data. See User Data Storage.

Matlab/Simulink

Simulink Interface

Arc Tangent Simulink Block

The Motor Number of the Motor General Output block that specifies which Motor object is used for input.

The Bit Number defines which bit should be used for the output. Bit 0 is always the LSB for the input. The MSB is 31.

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. For more information, see User Data Storage.

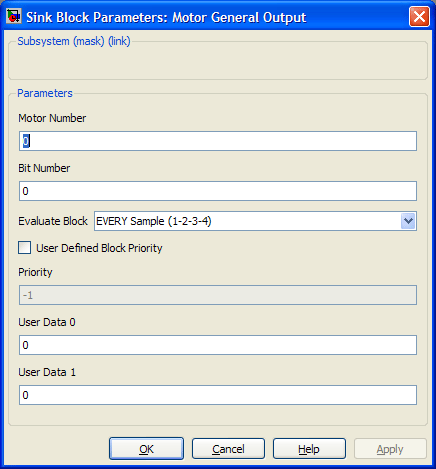

The block's update schedule is determined by the Evaluate Block. The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink model:

 Arc Tangent Parameters Dialog Box

C++ API

MOTOR_GENERAL_OUTPUTBlock

Declaration

Public Method


class MOTOR_GENERAL_INPUTBlock: public virtual Block
{
public:

	// User accessible coefficients
	long				BitNumber;
};


Required Header: mechaware.h

Description

The Motor General Output block is a special case of the Bit Output block. Used as a convenient way of targeting the motor’s output bits, abstracting the need for a source address and data type. See Overview for more information.

Parameters

long

BitNumber
Bit number of the input.

Methods

Block Methods

See Also

Motor General Input | mpiMotorGeneralOutSet
