Overview

The Sine block computes the sine of the input value. The units of the input value are radians.

The configuration values for this block are as follows:

Subsample Code

A code which determines the schedule for updating this block (every sample, even samples only, etc.) See Subsampling.

Matlab/Simulink

Simulink Interface

Sine Simulink Block

The input to the Sine block is a double precision value, with units of radians.

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

The block's update schedule is determined by the Subsample Code (See Subsampling). The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

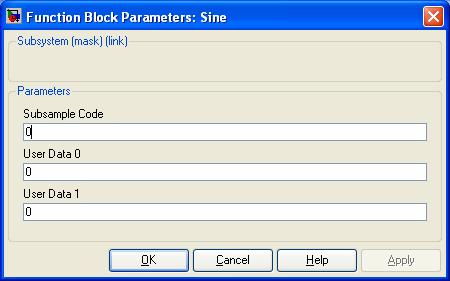

Sine Parameters Dialog Box

C++ API

SINBlock

Declaration

Public Method

	SINBlock& SIN ();
	Required Header: mechaware.h

Description

The Sine block computes the sine of the input. This block has no configurable parameters.

Methods

Block Methods
