Overview

The Cosine block computes the cosine of the input value. The units of the input value are radians.

The configuration values for this block are as follows:

Subsample Code	A code which determines the schedule for updating this block (every sample, even samples only, etc.) See Subsampling.
User Data 0	Application-specific data. See User Data Storage.
User Data 1	Application-specific data. See User Data Storage.

Matlab/Simulink

Simulink Interface

Cosine Simulink Block

The input to the Cosine block is a double precision value, with units of radians.

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

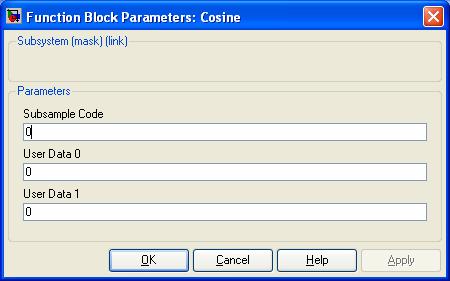

The block's update schedule is determined by the Subsample Code (See Subsampling). The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

Cosine Parameters Dialog Box

C++ API

COSBlock

Declaration

Public Method

	COSBlock& COS ();
	Required Header: mechaware.h

Description

The Cosine block computes the cosine of the input. This block has no configurable parameters.

Methods

Block Methods
