Overview

The Power block raises the input by the power defined by the block’s exponent value.

The following parameters are used to configure this block:

Exponent	Exponent. Output = Input ^ Exponent
Subsample Code	A code which determines the schedule for updating this block (every sample, even samples only, etc.) See Subsampling.

Matlab/Simulink

Simulink Interface

Power simulink block

The Output of the Power block is the Input raised by the power defined by the Exponent.

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

The block's update schedule is determined by the Subsample Code (See Subsampling). The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

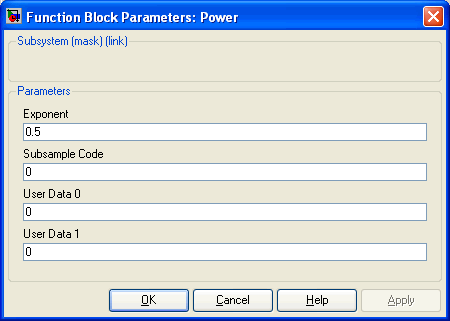

Power parameters dialog box

C++ API

POWERBlock

Declaration

Public Method

	POWERBlock& POWER();
	Required Header: mechaware.h

Description

The Power block raises the input by the power defined by the Exponent.

Parameters

double

POWER().Exponent

Power Exponent. Output = Input ^ Exponent

Methods

Block Methods
