Modulo Operator

Overview

Overview

The Modulo block calculates the remaining whole number of the division of the input by the divisor.  The following parameters are used to configure this block:

Divisor Divisor. Output = Input % Divisor Subsample Code A code which determines the schedule for updating this block (every sample, even samples only, etc.) See Subsampling. User Data 0 Application-specific data. See User Data Storage. User Data 1 Application-specific data. See User Data Storage.

Matlab/Simulink

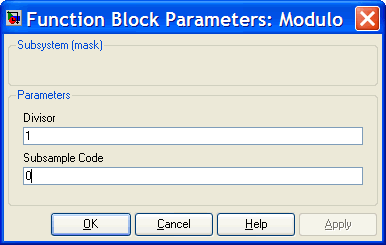

Simulink Interface The Output of a Modulo block is the whole number remainder of the Input divided by the divisor. The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details. The block's update schedule is determined by the Subsample Code (See Subsampling). The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

C++ API

MODULOBlock

Declaration

Public Method

	MODULOBlock&   MODULO();
	Required Header: mechaware.h

Description

The Modulo block calculates the whole number remainder of division of the input by the divisor.

long MODULO().Divisor Divisor. Output = Input % Divisor

Methods

Block Methods
