Axis.BrakeReleaseDelay

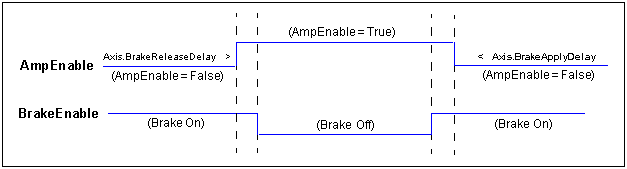

The time between when the amplifier is enabled and the brake is disabled.

Case 2. Axis.BrakeMode = Mpx.BrakeMode.Delay

Version History

Introduced in MPX 2.0.

Units

Seconds

Type

Double

Default

0.0

Visual Basic

Syntax

Property BrakeReleaseDelay As Double

Sample Code

Controller.Axis(0).BrakeMode = Mpx.BrakeMode.Delay
Controller.Axis(0).BrakeApplyDelay = .05
Controller.Axis(0).BrakeReleaseDelay = .1

Sample Application

Syntax

double BrakeReleaseDelay;

Sample Code

Controller.Axis[0].BrakeMode = Mpx.BrakeMode.Delay;
Controller.Axis[0].BrakeApplyDelay = .05;
Controller.Axis[0].BrakeReleaseDelay = .1;
