ZMP-SynqNet-CPCI-3U:

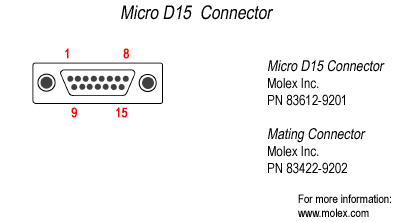

Micro D15 Connector

See Also: General Controller I/O Specifications | Connect System I/O

Pin
Signal
1
OPTO_A
2
OPTO_B
3
OPTO_C
4
OPTO_D
5
OPTO_E
6
OPTO_F
7
XESTOP
8
SFGND
9
OPTO_A_Rtn
10
OPTO_B_Rtn
11
OPTO_C_Rtn
12
OPTO_D_Rtn
13
OPTO_E_Rtn
14
OPTO_F_Rtn
15
XESTOP_Rtn

Cable Accessory

MEI offers the following cable accessory: C001-0036
