Connect ZMP Controller I/O


ZMP-SynqNet-PCI
PN: T015-0001

Controller I/O Connector: HD15


ZMP-SynqNet-CPCI-3U
PN: T127-0001

Controller I/O Connector: Micro D15

E-Stop | Controller I/O

System E-Stop Input and Digital Inputs 3-5

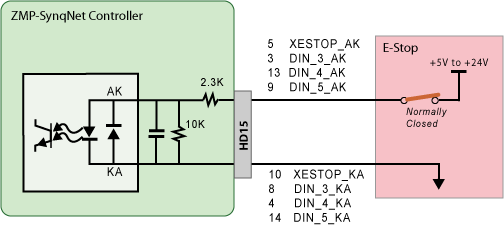

To Pull-up Logic

The E-Stop Input and Digital Inputs 3-5 (DIN) have the same pull-up logic. There are 3 Controller I/O digital inputs. Unlike the XMP-SynqNet controllers, the ZMP-SynqNet controllers have dedicated I/O.

T015-0001: HD15 Connector Pinouts
T127-0001: Micro D15 Connector Pinouts

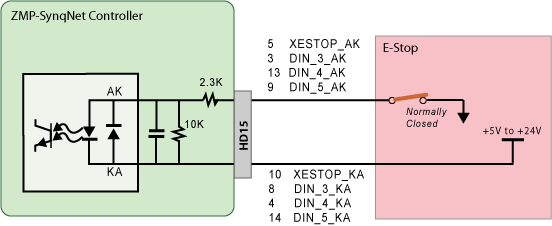

To Pull-down Logic

Connect E-Stop input to pull-down logic.

T015-0001: HD15 Connector Pinouts
T127-0001: Micro D15 Connector Pinouts

pulldown



System Digital Outputs 0-2

Opto-isolated Controller I/O

There are 3 Controller I/O digital outputs. Unlike the XMP-SynqNet controllers, the ZMP-SynqNet controllers have dedicated I/O.

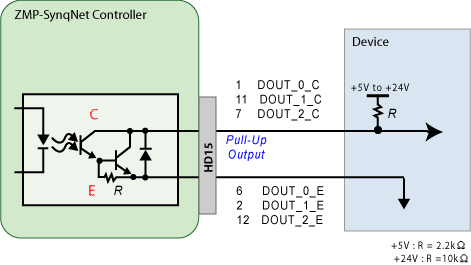

Pull-Up Output Logic

T015-0001: HD15 Connector Pinouts
T127-0001: Micro D15 Connector Pinouts

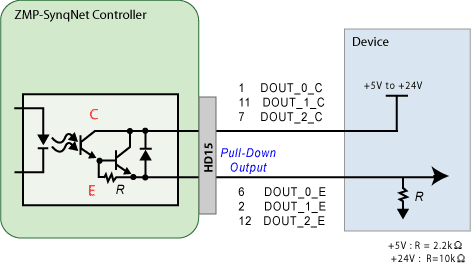

Pull-Down Output Logic

T015-0001: HD15 Connector Pinouts
T127-0001: Micro D15 Connector Pinouts
