ZMP-SynqNet-PCI:

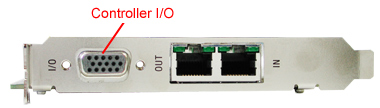

HD15 Connector

See Also: General Controller I/O Specifications | Connect Controller I/O

Pin
Signal
1
 DOUT_0_C
2
 DOUT_1_E
3
 DIN_3_AK
4
 DIN_4_KA
5
 XESTOP_AK
6
 DOUT_0_E
7
 DOUT_2_C
8
 DIN_3_KA
9
 DIN_5_AK
10
 XESTOP_KA
11
 DOUT_1_C
12
 DOUT_2_E
13
 DIN_4_AK
14
 DIN_5_KA
15
 SHIELD



Cable Accessory

MEI offers the following cable accessory: C001-0037

STC Accessory

Phoenix Contact offers the following STC accessory:

Phoenix Contact
PN: 22 81 13 1
Part Type: FLKM-D15 SUB/S
Description: VARIOFACE module, with screw connection and D-Subminiature pin strip, for mounting on NS 35/7.5 or NS 32, 15-pos.
