SynqNet Motion Controller:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ZMP-SynqNet-CPCI-3U |

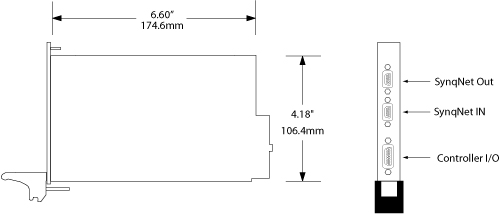

See Also
UL Listing and CE Marking
|
Feature |
Parameter |
Specification |
|
Processor
|
CPU |
Motorola
PowerPC 64-bit floating point |
|
Speed |
466 MHz CPU | |
|
Memory |
16MB of 133MHz SDRAM | |
|
Bus
Interface
|
Type |
"Universal" CPCI slot (3.3V or 5V signaling) |
|
CPCI Bus Speed |
Min. 25MHz Max. 66MHz |
|
|
Power |
3.3V @ 2.5A | |
|
Servo
Loop
|
Update
Rate |
User Programmable |
|
4
Axes Update Rate |
Max: 48kHz | |
|
12
Axes Update Rate |
Max: 16kHz | |
SynqNet
|
Connectors |
Micro-D (9-pin) |
|
User I/O |
Connector |
Micro-D (15-pin) |
|
I/O Lines |
3 Inputs 3 Outputs 1 ESTOP Input |
|
Output Low Voltage |
Max. 1.0V @ IOUT = 50mA | |
Output Collector Power Dissipation |
150mW | |
Input High Voltage (ON) |
Min. 4.0V Max. 28.8V |
|
Input Low Voltage (OFF) |
Max. 0.8V | |
Input High Current |
Max. 15mA | |
Input Low Current |
Max. 1mA @ 0.8V | |
|
Input
Impedence |
Min. 2300 Ohms | |
Kinematic Ranges |
Position, Velocity, Acceleration, Jerk |
64-bit floating point |
Environment
|
Operating Temp. |
0-50 °C |
Storage Temp. |
0-85 °C | |
Humidity |
20 - 90% RH, non-condensing | |
Air Flow |
Min. 200 LFM; 1M/sec |
Feature |
Photo |
Pinouts |
PNs w/ Option |
Micro-D (9-pin) |
 |
T127-0001 |
|
Micro-D (15-pin) |
 |
T127-0001 |
