S200: Mechanical Specifications


AC Input Drives
DC Input Drives
Base Drive
 S20260-VTS
S20360-VTS
w/ Option Card
S20260-XX
S20360-XX
AC3
S20660-XX
Base Drive
S20330-VTS
S20630-VTS
w/ Option Card
S20330-XX
S20630-XX
Drive Dimensions
   Drive Height (A)
175.0 mm
6.90 in
175.0 mm
6.90 in
175.0 mm
6.90 in
152.4 mm
6.00 in
152.4 mm
6.00 in
   Drive Width (B)
54.8 mm
2.16 in
54.8 mm
2.16 in
64.0 mm
2.52 in
28.7 mm
1.13 in
48.3 mm
1.90 in
   Drive Depth1 (C)
131.6 mm
5.18 in
131.6 mm
5.18 in
131.6 mm
5.18 in
100.8 mm
3.97 in
100.8 mm
3.97 in
Mounting Hardware
M4 or #8
M4 or #8
M4 or #8
M4 or #8
M4 or #8
Drive Weight
0.77 kg
1.69 lb
0.85 kg
1.86 lb
0.82 kg
1.80 lb2
0.40 kg
0.88 lb
0.50 kg
1.10 lb
  • 1 - Depth measurement is for drive only. Add approximately 50.8 mm (2 in) to accommodate mating connectors and wire bend radius.
  • 2 - With option card 1.97.

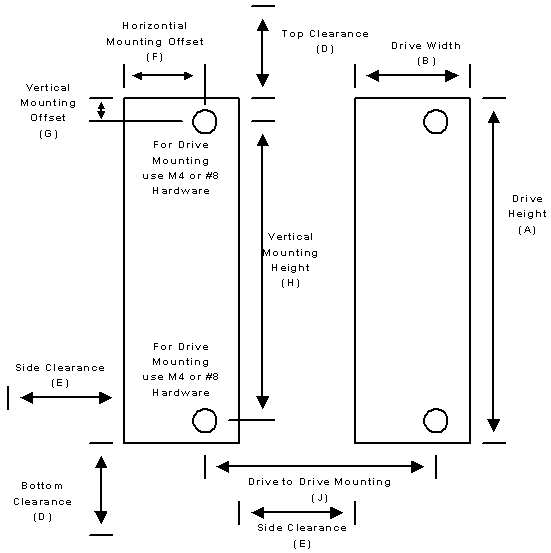

For mounting information, see Mounting the Drive.

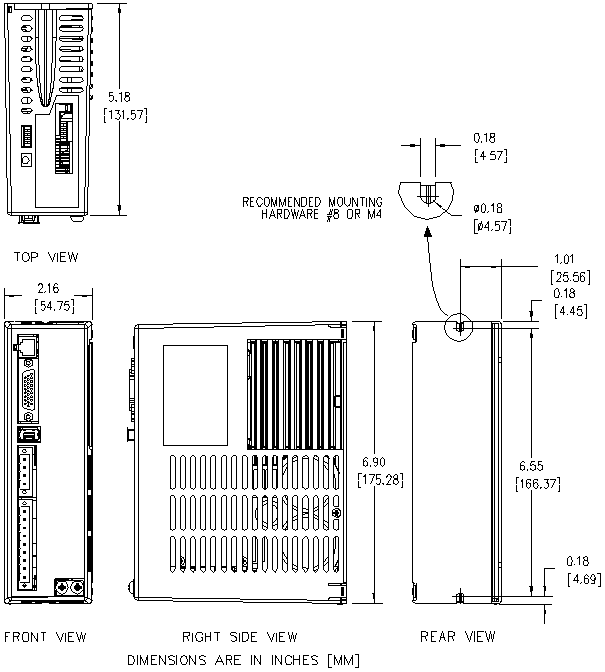

AC Base Drive

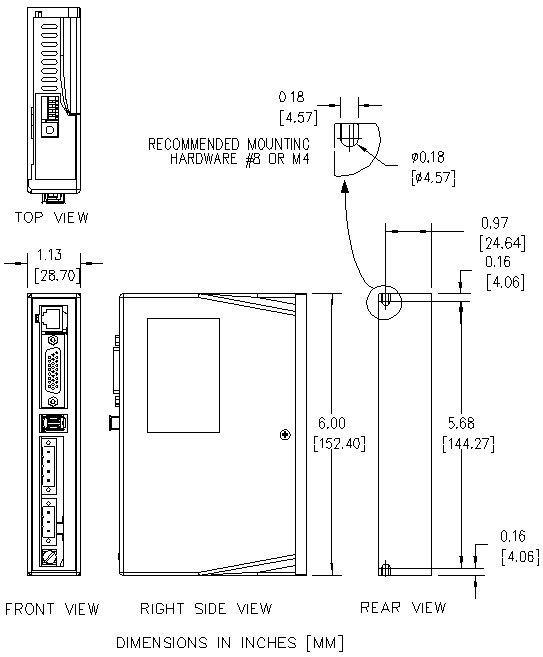

DC Base Drive

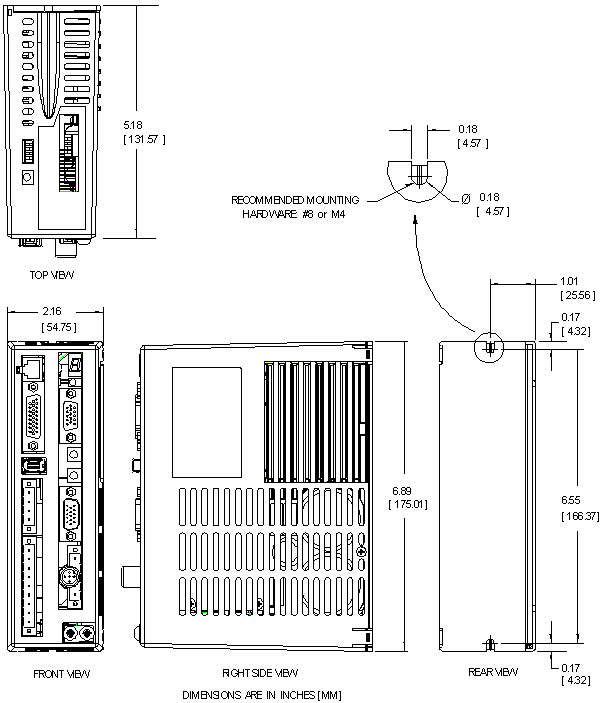

AC-SynqNet Drive

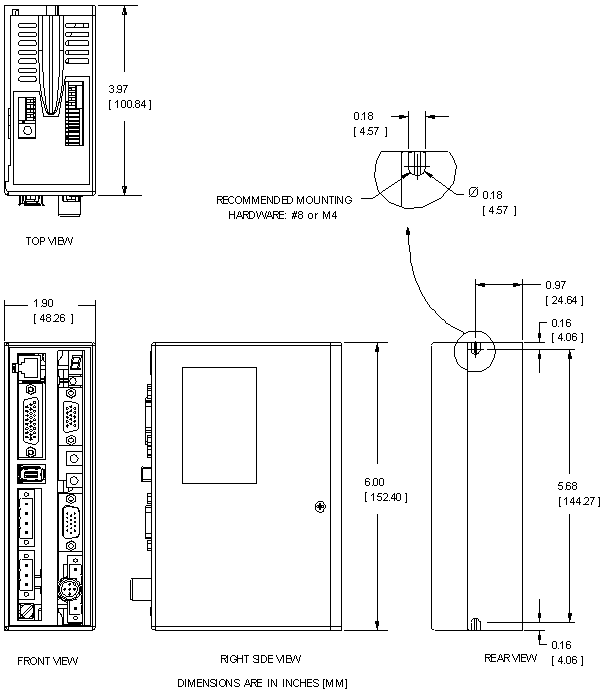

DC-SynqNet Drive
