Connect eXMP User I/O

E-Stop | User I/O

System E-Stop Input

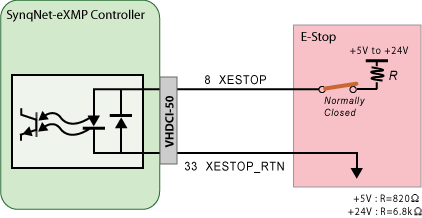

To Pull-up Logic

Connect E-Stop input to pull-up logic.

VHDCI-50 Connector
(See pinouts for this connector)

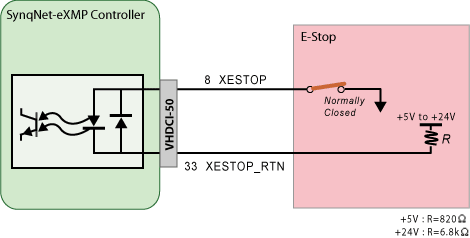

To Pull-down Logic

Connect E-Stop input to pull-down logic.

VHDCI-50 Connector
(See pinouts for this connector)



User I/O

As User I/O Outputs

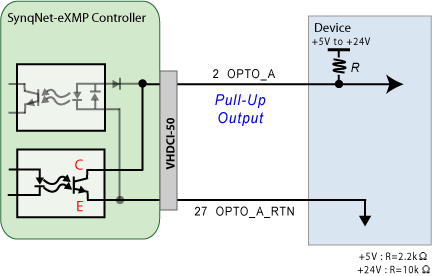

Connect User I/O outputs to pull-up logic.

VHDCI-50 Connector
(See pinouts for this connector)

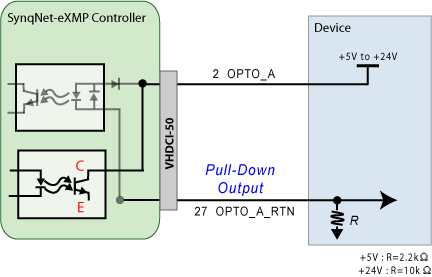

Connect User I/O outputs to pull-down logic.

VHDCI-50 Connector
(See pinouts for this connector)



Opto-isolated User I/O

There are 6 User I/O. Each User I/O is individually configurable as an input or output.

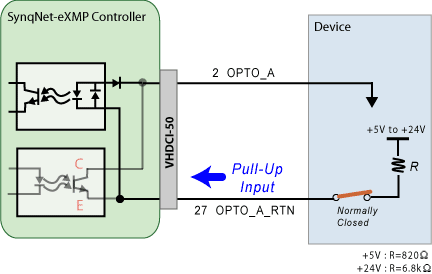

Connect User I/O input to pull-up logic.

VHDCI-50 Connector
(See pinouts for this connector)

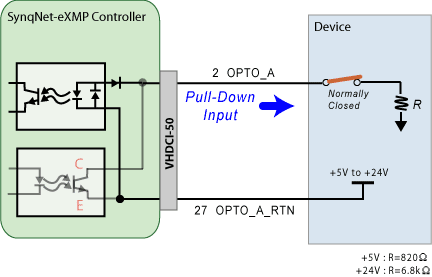

Connect User I/O input to pull-down logic.

VHDCI-50 Connector
(See pinouts for this connector)
