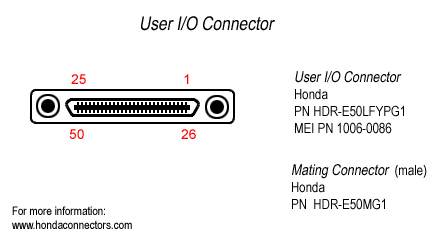

User I/O Connector
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pin |
Signal |
Signal |
Pin |
|
1 |
Gnd |
Gnd |
26 |
|
2 |
OPTOA | OPTOA_Rtn |
27 |
|
3 |
OPTOB | OPTOB_Rtn |
28 |
|
4 |
OPTOC | OPTOC_Rtn |
29 |
|
5 |
OPTOD | OPTOD_Rtn |
30 |
|
6 |
OPTOE | OPTOE_Rtn |
31 |
|
7 |
OPTOF | OPTOF_Rtn |
32 |
|
8 |
XESTOP | XESTOP_Rtn |
33 |
|
9 |
Not Connected
|
Not Connected
|
34 |
|
10 |
Not Connected
|
Not Connected
|
35 |
|
11 |
Not Connected
|
Not Connected
|
36 |
|
12 |
Not Connected
|
Not Connected
|
37 |
|
13 |
Gnd | Gnd |
38 |
|
14 |
Reserved
|
Reserved
|
39 |
|
15 |
Reserved
|
Reserved
|
40 |
|
16 |
Reserved
|
Reserved
|
41 |
|
17 |
Reserved
|
Reserved
|
42 |
|
18 |
Reserved
|
Reserved
|
43 |
|
19 |
Reserved
|
Reserved
|
44 |
|
20 |
Reserved
|
Reserved
|
45 |
|
21 |
Reserved
|
Reserved
|
46 |
|
22 |
Not Connected
|
Not Connected
|
47 |
|
23 |
Not Connected
|
Not Connected
|
48 |
|
24 |
Not Connected
|
Not Connected
|
49 |
|
25 |
Gnd | Gnd |
50 |

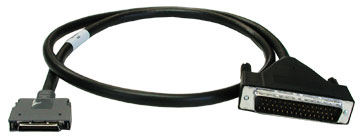

MEI offers the following cable accessory:
C001-0018
CBL-50 VHDCI D-SUB
Interface Cable
