TSIO-8001; Field Power Supply
Field Power Supply 10A (24Vdc)
|
|
- The module is the expansion power supply.
- Under normal operation, the TSIO-1002
CANopen Network Adapter supplies a basic field power supply of
10A. However, if your I/O setup requires a current greater than
10A, you will need to use the TSIO-8001 expansion power module
to ensure that there is sufficient current for all the slices.
See diagram below.
- Receives external 24V input, converts up to 5V/1A, and supplies new system power to attached slices.
|
| Input Specification
|
| Inputs Voltage Range |
11 ~ 28.8Vdc |
| LED Indicators |
2 green for Input status
|
| System Power Input
Voltage |
Normal Input 24Vdc |
| Field Power Input Voltage |
24Vdc normal (±20%) |
| Fn-Bus Output Voltage
|
5Vdc, 1A |
| Field Power Connector Current |
Max. 10A |
| Operating Temperature |
–20 to +60°C |
| Storage Temperature |
–45 to +85°C |
| Output Specification
|
| Logic Power Dissipation |
Expansion Power Supply |
| I/O Cables |
Max. AWG 14 |
| Weight |
70g |
| Module Size |
67mm x 12mm x 95mm
(H x W x L) |

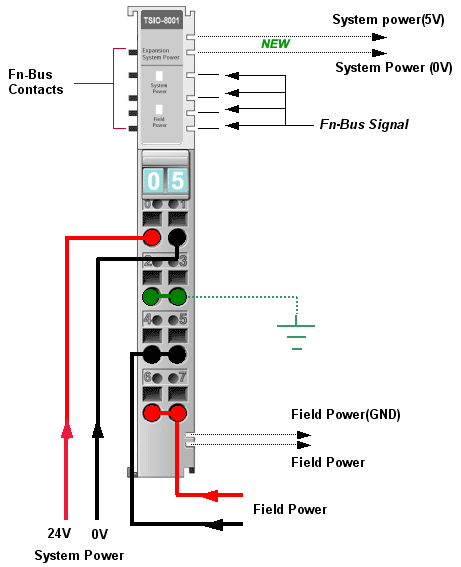

Pinouts
 |
|
Pin No.
|
Description
|
|
0
|
System Power (+24V) |
|
1
|
System Power (0V) |
|
2
|
Chassis Ground |
|
3
|
Chassis Ground |
|
4
|
Field Power (0V) |
|
5
|
Field Power (0V) |
|
6
|
Field Power (+24V) |
|
7
|
Field Power (+24V) |
|
Power Status LED
|
State
|
LED
|
Indicates
|
| Signal OFF |
OFF |
Normal Operation (Inactive) |
| Signal ON |
Green
|
Normal Operation (Active) |
Wiring Examples

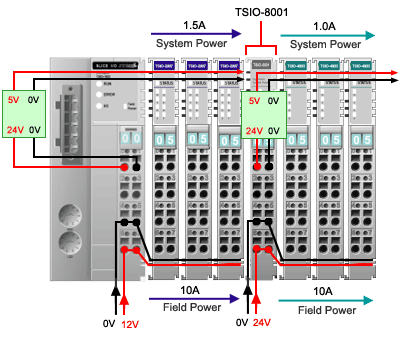

If you are using a SLICE I/O setup that requires more
than 10A of field power, you will need to add a TSIO-8001 expansion power
module to ensure that enough power will be available to all the slices. Unlike the TSIO-8002, new system power (1.0A) is generated from the TSIO-8001 slice.
|
