SQIO-MIXEDMODULE1: Digital Inputs
Characteristics | Application | Pinouts
Characteristics
| |
- The digital inputs are arranged in two groups of 32.
- Each input group has its own common connection and is collectively isolated from the other input group.
- Inputs can be connected as either current sinking or current sourcing on a per-group basis.
- The input update process will take place simultaneously on all board modules.
- Input Voltage Range: 5 - 24V ±20%
Inputs will be turned ON by a valid voltage. (i.e. 4-28.8V)
|
Parameter |
Value |
| Input impedance |
2300 |
| Minimum ON voltage |
4V |
| Maximum OFF voltage |
0.8V |
| Deadband (typical) |
450mV |
| Maximum input voltage |
28.8V |
Application
The digital inputs are arranged in two groups of 32. Each group has its own common connection. The inputs can be configured for either current sinking or current sourcing.
Current Sinking

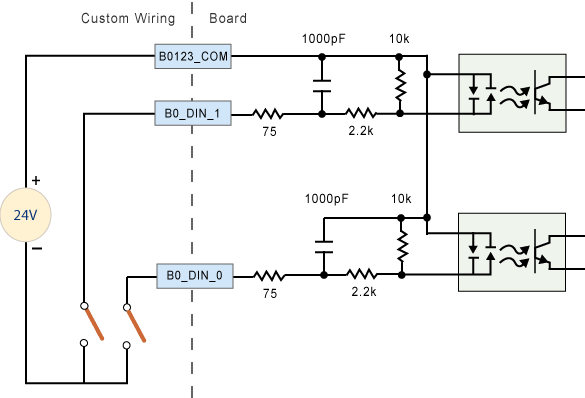

Diagram below shows current sinking connection to an input bank (only two inputs shown).
Current sinking connection to an input bank (only two inputs shown)
Current Sourcing

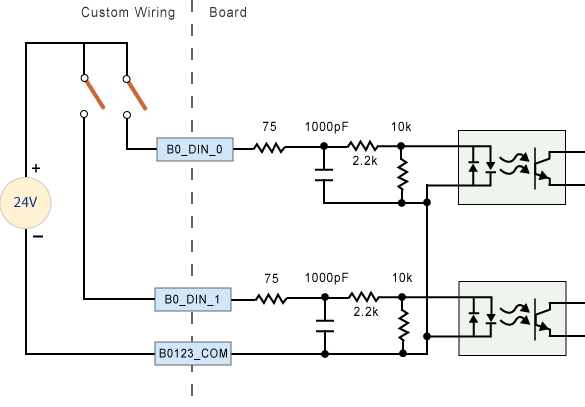

Diagram below shows current sourcing connection to an input bank (only two inputs shown).
Current sourcing connection to an input bank (only two inputs shown)
Pinouts
For pinout information, see the following pages.
Inputs: P4, P5
Outputs: J2, J3
|
