SQIO-MIXEDMODULE1: Digital Output Pinouts

NOTE: The common connections are per bank and are independent of the 24V supply to the SQID.

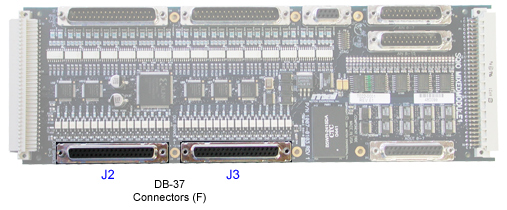

DB-37; J2

Pin
Signal
(sort by pin # )
Description
1
 B2_DOUT_0 Digital Output
20
 B2_DOUT_1 Digital Output
2
 B2_DOUT_2 Digital Output
21
 B2_DOUT_3 Digital Output
3
 B2_DOUT_4 Digital Output
22
 B2_DOUT_5 Digital Output
4
 B2_DOUT_6 Digital Output
23
 B2_DOUT_7 Digital Output
5
 B3_DOUT_0 Digital Output
24
 B3_DOUT_1 Digital Output
6
 B3_DOUT_2 Digital Output
25
 B3_DOUT_3 Digital Output
7
 B3_DOUT_4 Digital Output
26
 B3_DOUT_5 Digital Output
8
 B3_DOUT_6 Digital Output
27
 B3_DOUT_7 Digital Output
9
 B0123_24V Opto Power
28
 B0123_24V Opto Power
10
 B0123_24V_RTN Opto Common
29
 B0123_24V_RTN Opto Common
11
 NC Not Connected
30
 B0_DOUT_0 Digital Output
12
 B0_DOUT_1 Digital Output
31
 B0_DOUT_2 Digital Output
13
 B0_DOUT_3 Digital Output
32
 B0_DOUT_4 Digital Output
14
 B0_DOUT_5 Digital Output
33
 B0_DOUT_6 Digital Output
15
 B0_DOUT_7 Digital Output
34
 B1_DOUT_0 Digital Output
16
 B1_DOUT_1 Digital Output
35
 B1_DOUT_2 Digital Output
17
 B1_DOUT_3 Digital Output
36
 B1_DOUT_4 Digital Output
18
 B1_DOUT_5 Digital Output
37
 B1_DOUT_6 Digital Output
19
 B1_DOUT_7 Digital Output



DB-37; J3

Pin
Signal
(sort by pin # )
Description
1
 B6_DOUT_0 Digital Output
20
 B6_DOUT_1 Digital Output
2
 B6_DOUT_2 Digital Output
21
 B6_DOUT_3 Digital Output
3
 B6_DOUT_4 Digital Output
22
 B6_DOUT_5 Digital Output
4
 B6_DOUT_6 Digital Output
23
 B6_DOUT_7 Digital Output
5
 B7_DOUT_0 Digital Output
24
 B7_DOUT_1 Digital Output
6
 B7_DOUT_2 Digital Output
25
 B7_DOUT_3 Digital Output
7
 B7_DOUT_4 Digital Output
26
 B7_DOUT_5 Digital Output
8
 B7_DOUT_6 Digital Output
27
 B7_DOUT_7 Digital Output
9
 B4567_24V Opto Power
28
 B4567_24V Opto Power
10
 B4567_24V_RTN Opto Common
29
 B4567_24V_RTN Opto Common
11
 NC Not Connected
30
 B4_DOUT_0 Digital Output
12
 B4_DOUT_1 Digital Output
31
 B4_DOUT_2 Digital Output
13
 B4_DOUT_3 Digital Output
32
 B4_DOUT_4 Digital Output
14
 B4_DOUT_5 Digital Output
33
 B4_DOUT_6 Digital Output
15
 B4_DOUT_7 Digital Output
34
 B5_DOUT_0 Digital Output
16
 B5_DOUT_1 Digital Output
35
 B5_DOUT_2 Digital Output
17
 B5_DOUT_3 Digital Output
36
 B5_DOUT_4 Digital Output
18
 B5_DOUT_5 Digital Output
37
 B5_DOUT_6 Digital Output
19
 B5_DOUT_7 Digital Output
