Direct Cursor Measurement of Traces

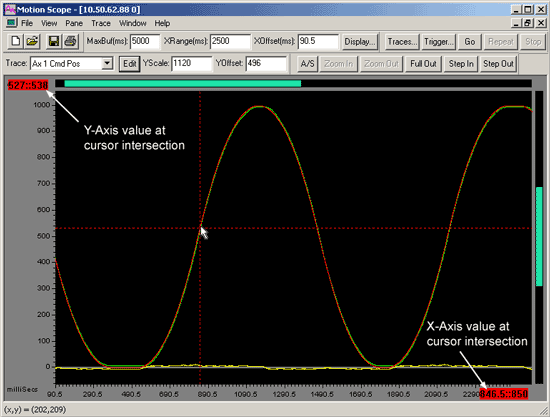

Motion Scope permits direct measurement of selected traces to determine X- and Y-axis values. This is done by clicking and dragging with the mouse (left button) while simultaneously holding down the Ctrl key.

The X- and Y-axis values for the cursor intersection are framed by fields at the lower-right and upper-left corners, respectively.
