Zoom and Step Buttons

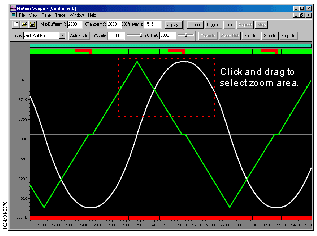

When traces are generated, the pane automatically scales the X-axis to the XRange size, and scales the Y-axis to accommodate the full vertical range of the data. Zoom and Step buttons are used to magnify portions of a pane by rescaling a selected area. Zoom buttons rescale both X- and Y-axis; the Step button rescales only the X-axis. To select an area for zooming or stepping, click and drag with the mouse to form a box cursor over the area of interest, then select one of the zoom buttons below.

Zoom In – Magnifies area within box cursor by rescaling both X- and Y-axis.

Zoom Out – Resizes previously zoomed-in area of pane to last used
                                    X- and Y-axis scaling.

Full Out – Returns X- and Y-axis scaling of pane to their original (starting) values.
                               The pane's X-axis is resized to its full XRange value.

Step In – Magnifies area within box cursor by rescaling only the X-axis.

Step Out – Resizes previously stepped or zoomed-in area of pane to last
                                 used X-axis scaling.
