Version Control

Finding the version of the Bode Tool

The version of the Bode Tool can be determined a couple of ways. The version of the MPI that the Bode Tool is compiled for is also available.

Click Help->About Bode Tool.

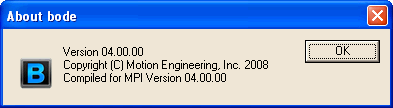

The Bode Tool version is shown below (Verion 04.00.00). This version of the Bode Tool was compiled for MPI version 04.00.00.

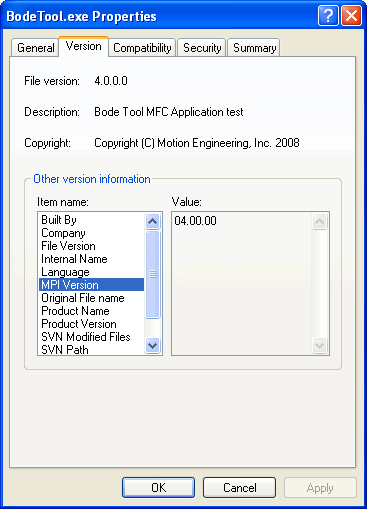

By right clicking on the Bode Tool executable in Windows Explorer, you can determine the same information as above. Click Properties ->Version.

The Bode Tool version number is listed as File version. The MPI Version is found under Other version information.
