Feedback Velocity

Mechaware API Documentation > Input

Overview

Overview

Description

The Feedback Velocity block is an input block that is a source for velocity data. The output value is calculated using the first difference of the position feedback. The output value is in Encoder Counts / Sample.

Example

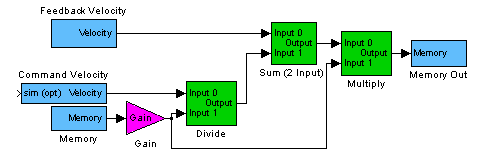

In the following example, Velocity Error is calculated by Subtracting Actual Velocity from Commanded Velocity. The Feedback Velocity is returned as the first difference of the feedback and is measured in the Encoder Counts per Sample. The Commanded Velocity is in Encoder Counts per Second; therefore, that difference must be accounted for in units.

The Feedback Velocity is returned in Counts/Sample; Therefore, to compare Feedback Velocity with Command Velocity, divide the Command velocity by the controller Sample Rate.

The following parameters are used to configure this block at load time:



Motor Number

The number of the axis which is the source of the position data. This number may be absolute or linked to the Model Number.

Encoder Number

The number of the encoder on the motor which is the source of the position. A value of 0 specifies the primary encoder, while a value of 1 selects the secondary encoder.

Evaluate Block

This block allows you to specify whether the block executes Every Sample, Every Other Sample (Odd or Even), or Every Fourth Sample (and specify the First, Second, Third, or Fourth). This provides greater flexibility in controlling the execution of a model and to preserve performance for other areas of motion control.
User Defined Block Priority When selected, allows you to enter a Priority Code to modify Execution Ordering of this block. For more information, see Block Execution Order and User Defined Block Priority.
Priority For an explanation of how the Priority field is used by the MechaWare Model Downloader, see Block Execution Order and User Defined Block Priority.
User Data 0 Application-specific data. See User Data Storage.
User Data 1 Application-specific data. See User Data Storage.

Matlab/Simulink

Simulink Interface

The Output of the Feedback Velocity block is the raw Encoder Feedback Velocity (counts/sample) value. This block has no inputs.

The Motor Number of the axis providing the position data is determined by the Motor Number parameter. This number can be absolute or linked to the model number.

The Encoder Number parameter specifies which of the motor’s feedback devices to use.

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

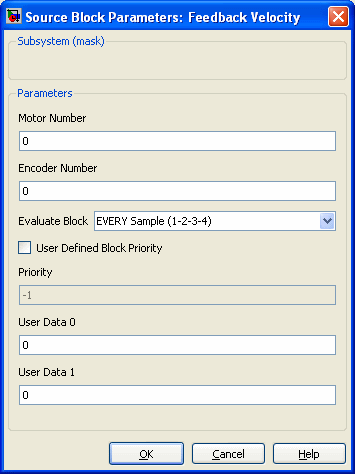

The block's update schedule is determined by the Evaluate Block. The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

C++ API

FEEDBACK_VELOCITYBlock

Declaration

Public Method


class FEEDBACK_VELOCITYBlock: public virtual Block
{
public:
	// User accessible coefficients
};


Required Header: mechaware.h

Description

The Feedback block is used to connect the inputs of a model.

Methods

Block Methods
