Overview

The Double To Float conversion block is useful when an internal memory structure’s data type cannot be changed, but is needed in a different data type.

The configuration values for this block are as follows:

Evaluate Block	This block allows you to specify whether the block executes Every Sample, Every Other Sample (Odd or Even), or Every Fourth Sample (and specify the First, Second, Third, or Fourth). This provides greater flexibility in controlling the execution of a model and to preserve performance for other areas of motion control.
User Defined Block Priority	When selected, allows you to enter a Priority Code to modify Execution Ordering of this block. For more information, see Block Execution Order and User Defined Block Priority.
Priority	For an explanation of how the Priority field is used by the MechaWare Model Downloader, see Block Execution Order and User Defined Block Priority.
User Data 0	Application-specific data. See User Data Storage.
User Data 1	Application-specific data. See User Data Storage.

Matlab/Simulink

Simulink Interface

The Double to Float input is a double precision (64-bit) floating point value, output is single precision (32-bit) floating point value.

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

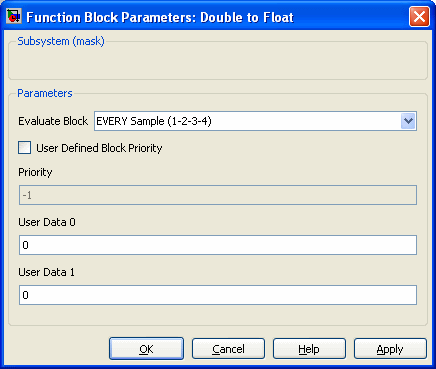

The block's update schedule is determined by the Evaluate Block. The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

C++ API

DTOFBlock

Declaration

Public Method

				class DTOFBlock: public virtual Block { public: // User accessible coefficients };
				Required Header: mechaware.h

Description

The Double to Float input is a double precision (64-bit) floating point value, output is single precision (32-bit) floating point value.

Note: These blocks have no configurable parameters.

Methods

Block Methods
