Overview

The Switch block will select one of its two inputs to pass through to the output. The input to pass through is chosen by the value of the Switch State input based on the following:

If Switch State is 0, then output is Input 0; otherwise, the output is Input 1.

The configuration values for this block are as follows:

Subsample Code

A code which determines the schedule for updating this block (every sample, even samples only, etc.) See Subsampling.

Matlab/Simulink

Simulink Interface

Switch Simulink Block

This block has three inputs Input 0, Input 1 and Switch State . The block will output one of the two inputs based on the Switch State.

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

The block's update schedule is determined by the Subsample Code (See Subsampling). The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

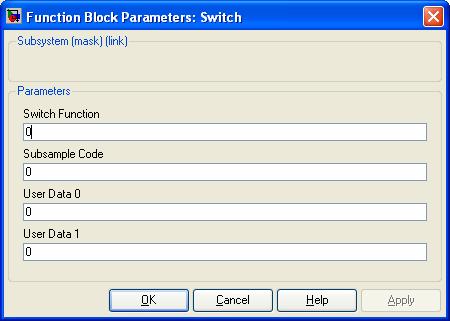

Switch Parameters Dialog Box

C++ API

SWITCHBlock

Declaration

Public Method

	SWITCHBlock& SWITCH ();
	Required Header: mechaware.h

Description

The Switch block will output one of the two inputs based on the Switch State input . This block has no configurable parameters.

Methods

Block Methods
