Overview

The Constant block outputs a constant value.

The configuration values for this block are as follows:

Constant	Constant. Output = Constant
Subsample Code	A code which determines the schedule for updating this block (every sample, even samples only, etc.) See Subsampling.
User Data 0	Application-specific data. See User Data Storage.
User Data 1	Application-specific data. See User Data Storage.

Matlab/Simulink

Simulink Interface

bin_img1

The Output of a Constant block is the Constant value defined in the block.

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

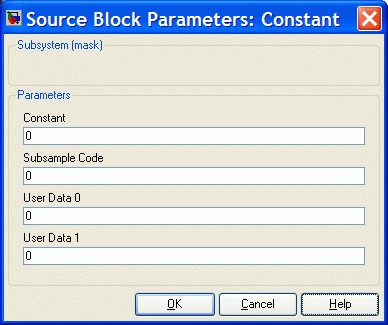

The block's update schedule is determined by the Subsample Code (See Subsampling). The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

bin_img2

C++ API

CONSTANTBlock

Declaration

Public Method

	CONSTANTBlock& CONSTANT();
	Required Header: mechaware.h

Description

The Constant block outputs a constant value.

Parameters

Double

CONSTANT().Constant

Constant Constant. Output = Constant

Methods

Block Methods
