Overview

The Clip block provides symmetrical limits for an input signal. The signal will saturate at a maximum value of (+ Limit) and a minimum value of (– Limit). The input signal is offset by an amount defined by offset prior to the clipping the signal to +/- limit.

clip

The configuration values for this block are as follows:

Limit	Symmetric Limit. If Input + Offset < +Limit, or > -Limit, then Output = Input + Offset If Input + Offset >= + Limit, then Output = + Limit If Input + Offset <= -Limit, then Output = -Limit
Offset	Offset value that is summed with the Input value before clipping the input to the +/- Limit.
Subsample Code	A code which determines the schedule for updating this block (every sample, even samples only, etc.) See Subsampling.
User Data 0	Application-specific data. See User Data Storage.
User Data 1	Application-specific data. See User Data Storage.

Matlab/Simulink

Simulink Interface

bin_img1

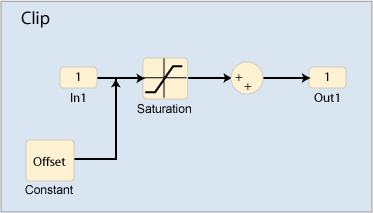

The Output of a clip block is the Input plus the offset clipped by the +/- limit.

If Input + Offset < +Limit, or > -Limit, then Output = Input + Offset

If Input + Offset >= + Limit, then Output = + Limit

If Input + Offset <= -Limit, then Output = -Limit

The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

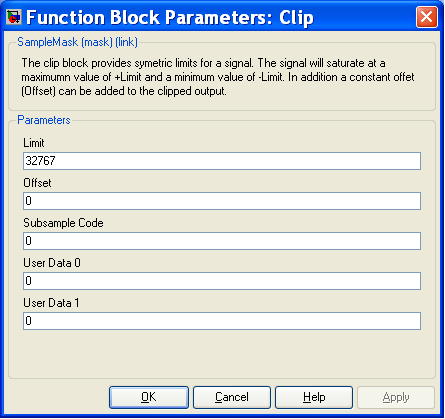

The block's update schedule is determined by the Subsample Code (See Subsampling). The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:

bin_img2

C++ API

CLIPBlock

Declaration

Public Method

	CLIPBlock& CLIP();
	Required Header: mechaware.h

Description

The Clip block provides symmetrical limits for an input signal. The signal will saturate at a maximum value of (+ Limit) and a minimum value of (– Limit). The input signal is offset by an amount defined by offset prior to the clipping the signal to +/- limit.

long

CLIP().Limit

Symmetric Limit.

If Input + Offset < +Limit, or > -Limit, then Output = Input + Offset
If Input + Offset >= + Limit, then Output = + Limit
If Input + Offset <= -Limit, then Output = -Limit

long

CLIP().Offset

Offset value that is summed with the Input value before clipping the input to the +/- Limit.
