Binary Relation
Overview
Overview
The Binary Relation block performs the specified logical (bitwise) operation on two inputs. The logical operations are AND, OR, Negative AND (NAND), Negative OR (NOR), and Exclusive OR (XOR).
The configuration values for this block are as follows:
| |
| op |
Operation Code: 0 = AND, 1 = OR, 2 = NAND, 3 = NOR, 4 = XOR.
|
| Subsample Code |
A code which determines the schedule for updating this block (every sample, even samples only, etc.) See Subsampling. |
| User Data 0 |
Application-specific data. See User Data Storage. |
| User Data 1 |
Application-specific data. See User Data Storage. |
|
Matlab/Simulink
Simulink Interface
The Output is a 32-bit integer formed from a logical operation on the 32-bit integer inputs.
The op parameter determines the operation:
0 AND
1 OR
2 NAND
3 NOR
4 XOR
The block has two user data fields (User Data 0, User Data 1) to store application-specific data for convenient storage and retrieval. See User Data Storage for details.

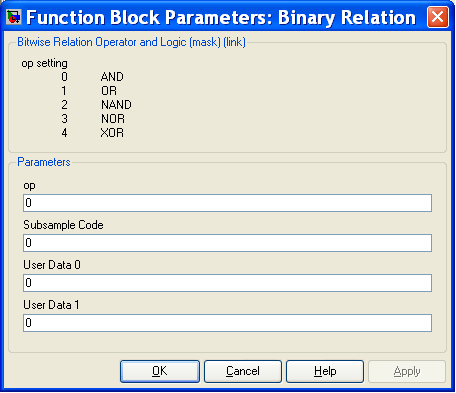

The block's update schedule is determined by the Subsample Code (See Subsampling). The following Parameter Dialog Box can be opened by double-clicking on the block in a Simulink Model:
 |
|
C++ API
BROLBlock
Declaration
Public Method
| |
BROLBlock& BROL(); |
| |
Required Header: mechaware.h |
Description
The Binary Relation block performs the specified logical (bitwise) operation on two inputs. The logical operations are AND, OR, Negative AND (NAND), Negative OR (NOR), and Exclusive OR (XOR)
| |
| long |
BROL().Op |
Operation Code: 0 = AND, 1 = OR, 2 = NAND, 3 = NOR, 4 = XOR. |
|
See Also
Compare | Relation
|
