Quick Start Guide MPX.NET

PCI

The standard XMP-SynqNet-PCI motion controller has a "universal" PCI interface, which operates in either 3.3V or 5V signaling backplanes. The 120-pin edge connector plugs into the host PCI bus slot. All motion control I/O is through the RJ-45 connectors on the rear panel.

There are currently two types of XMP-SynqNet-PCI controllers:

	XMP-SynqNet-PCI-RJ PN: T014-0002 UL Certification: File# E254128 (see note)
	XMP-SynqNet-PCI-RJ-CAN PN: T014-0001 UL Certification: File# E254128 (see note)

CAUTION
This hardware is for use only with compatible UL listed personal computers that have Installation Instructions detailing user installation of card cage accessories.
View UL Certification.

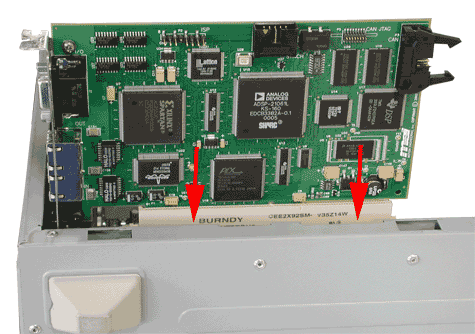

Install PCB into the host machine

Push the 120-pin edge connector into the mating connector on the host machine.

Below is a photo of an installed XMP-SynqNet-PCI-RJ-CAN controller in a standard PCI slot on a CPU.
