Platform Objects
Introduction
The Platform module provides a common interface to platform-specific functionality, such as memory allocation, resource locking, interrupts, signalling, and others.
The Platform object provides low-level platform-specific functionality and depends upon the combination of the operating system and the C compiler used for development. The Platform module was written to provide platform-independent access functions for use by the MPI. Unless your application needs to be written for compatibility with different platforms, MEI encourages the use of OS-specific functions. If an MEIPlatform object handle is required, one should obtain this handle from the MPIControl method meiControlPlatform.
WARNING!
Do NOT attempt to use the (intentionally undocumented) method, meiPlatformCreate().
Using this method will interfere with the inner workings of the MPI.

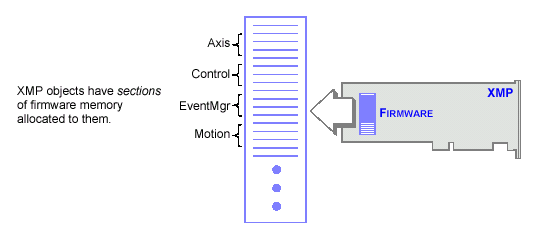

The meiObjectGive/Take(...) methods all use the meiPlatformLockGive/Take(...) methods. When you take a lock, you take exclusive access to the resource (i.e., the section of XMP firmware memory associated with that Object). When you give a lock, you release (give up) that exclusive access. Think of it as TakeAccessOf and GiveUpAccess.
Methods
| meiPlatformAlloc | Allocate system memory. | |
| meiPlatformAssertSet | Set an assertion handling function to be used by the MPI library. | |
| meiPlatformAtof | Convert a numeric string to a double. | |
| meiPlatformAtol | Convert a numeric string to a long. | |
| mpiPlatformControllerCheck | Checks condition of controller. | |
| meiPlatformExmpTempGet | ||
| meiPlatformExmpTempInit | ||
| meiPlatformFileClose | Close a file handle. | |
| meiPlatformFileOpen | Open a file handle. | |
| meiPlatformFileRead | Read data from a file handle created by meiPlatformFileOpen. | |
| meiPlatformFileWrite | Writes data to a file whose handle was created by meiPlatformFileOpen. | |
| meiPlatformFirmwareAddress16To32 | ||
| meiPlatformFirmwareAddress32To16 | ||
| meiPlatformFirmwareAddress32To64 | ||
| meiPlatformFirmwareAddress64To32 | ||
| meiPlatformFree | Free system memory. | |
| meiPlatformHostAddress32To64 | ||
| meiPlatformHostAddress64To32 | ||
| meiPlatformKey | Return an input character if an input character is available. | |
| meiPlatformMemoryGet64 | ||
| meiPlatformMemorySet64 | ||
| meiPlatformMemoryToFirmware | Convert a host memory address to a controller memory address. | |
| meiPlatformMemoryToHost | Covert a controller memory address to a host memory address. | |
| meiPlatformSleep | Put the current thread to sleep for the number of milliseconds specified. | |
| meiPlatformProcessId | Return the process identification number of the current process. | |
| meiPlatformTimerCount | Write to ticks the current timer count. | |
| meiPlatformTimerFrequency | Write to frequency the timer frequency of the current platform. | |
| meiPlatformTrace | Display printf(...)-style trace information | |
| meiPlatformTraceEol | Set the end-of-line (eol) to be used by meiPlatformTrace(...). | |
| meiPlatformTraceFile | Redirect trace output. | |
| meiPlatformTraceFunction | Display the trace output. | |
| meiPlatformWord64Orient |
Data Types
| MEIPlatformBoardType | ||
| MEIPlatformFileMode | ||
| MEIPlatformInfo | ||
| MEIPlatformMessage |
Constants
| MEIPlatformControlCountMax | ||
| MEIPlatformInfoCHAR_MAX |
