Quick Start Guide
ZMP-SynqNet Controller

Install the MDK (software)

  The MDK (software) can be accessed from the MDK InstallShield CD-ROM. By default, all of the files are copied to the following directory: C:\MEI. The InstallShield will install the following features and libraries:
      • Motion Programming Interface (MPI)
      • Motion Console
      • Motion Scope
      • VM3
      • On-line Documentation

Installation Steps

Step 1

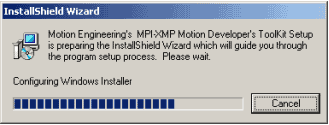

Click on the WinNTSetup.exe or Win32Setup.exe file.


Step 2

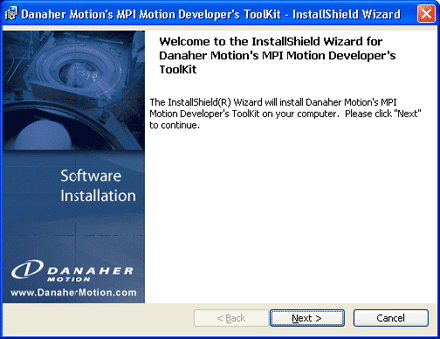

The InstallShield Wizard for Kollmorgen's MPI-ZMP Motion Developer's Toolkit should appear. Click Next.


Step 3
If you are installing the MDK for the first time, select "Complete" and click Next. To change the default installation directory (C:\MEI), choose the "Custom" installation.


Step 4

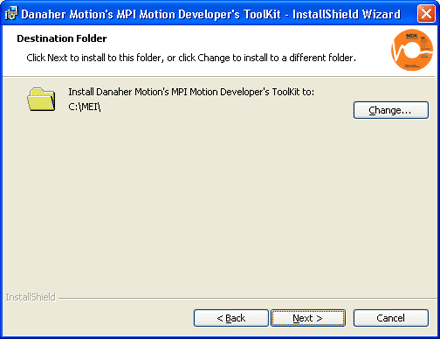

The default directory for the installation of all files and settings is C:\MEI. We recommend that you do not change the default installation directory unless directed to do so by an applications engineer. Click Next.



Step 5

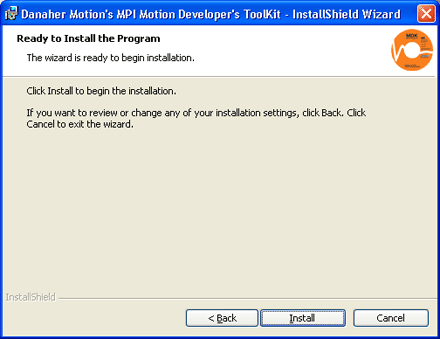

The InstallShield is now ready to install all of the files and settings. Click Install.


Step 6

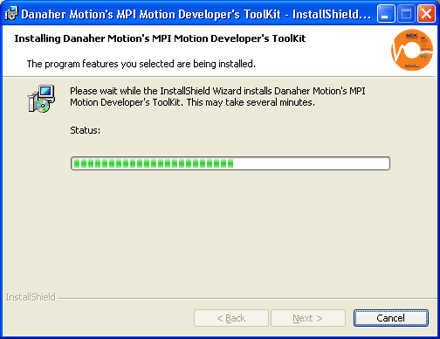

A series of windows will appear showing the progress of the installation.

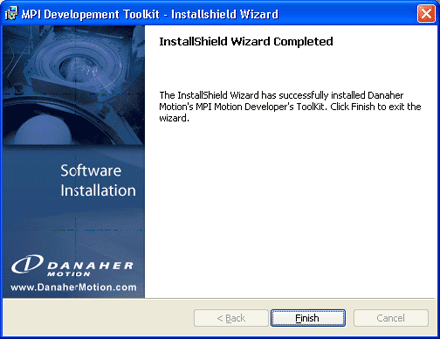

The following confirmation window will appear if the installation was successful. Click Finish to exit the InstallShield.
