SynqNet Motion Controller:
     XMP-SynqNet-PCI

Variations | Features | Dimensions | Connectors | Assembly Options | CAN

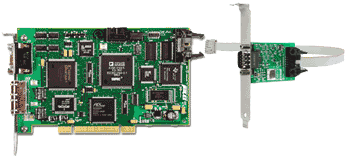

Variations

pci
XMP-SynqNet-PCI-RJ
PN: T114-0002*

ce  ul  (see note)

XMP-SynqNet-PCI-RJ
PN: T014-0002

ul  (see note)

XMP-SynqNet-PCI-RJ-CAN
PN: T014-0001; T114-0001*

ul  (see note)


XMP-SynqNet-PCI-RJ-CAN, NON-OPTO
PN: T014-0003; T114-0003*

ul  (see note)


CAN-XCVR, D9, OPTO
PN: A088-0001
(Opto-Isolated)
CAN-XCVR, D9, NON-OPTO
PN: A088-0002
(NON Opto-Isolated)

* RoHS compliant product.

CAUTION
ul View UL Certification.     UL Certification: File# E254128
This hardware is for use only with compatible UL listed personal computers that have Installation Instructions detailing user installation of card cage accessories.

ce    View CE Declaration of Conformity

See Also
UL Listing and CE Marking



Features

Feature
Parameter
Specification
Processor
DSP
Analog Devices SHARC 32-bit floating point
Speed
40 MHz / 150 MFLOPS
Board Interface
(SynqNet)
Connectors
RJ-45, CAN D-9 (optional)
Host Bus
Universal Half-Size PCI Slot
Memory Interface
32-bit direct memory map
Power
5 V @ 2.0A
User I/O
Connector
HD15
Lines
6 bi-directional I/O, 1 ESTOP Input
Servo Loop
Update Rate
User programmable
4 Axes Update Rate
Max: 20 kHz
8 Axes Update Rate
Max: 10 kHz
Kinematic Ranges
Position, Velocity, Acceleration, Jerk
32-bit floating point
CAN Network User
I/O (optional)
Protocol
CANopen - DS401
Environment
Operating Temp.
0-50 degrees C
Storage Temp.
0-50 degrees C
Humidity
20-90% RH, non-condensing

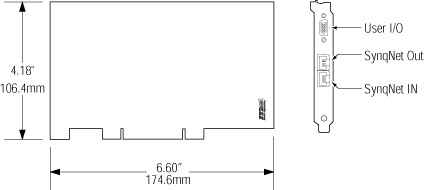

Dimensions

Connectors

Feature
Pinouts
PNs w/
Option

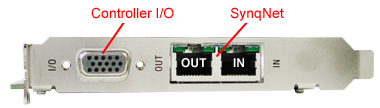

RJ-45
All
HD15
T014-0001, T114-0001,
T014-0002, T114-0002



Assembly Options

The XMP-SynqNet-PCI can be also be shipped with Multiple DSP Synchronizations and CAN support. For more information, please contact us at sales@motioneng.com.

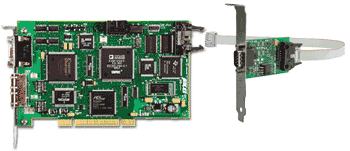

CAN


CAN-XCVR

Assembly Option
Pinouts
PNs w/
Option
CAN-XCVR
A088-0001,
A088-0002
