Quick Start Guide XMP-SynqNet Controller

Motion Console

Check Node Configuration

After the proper drive firmware has been downloaded, click on the button to check the SqNode Summary window to make sure that the proper number of drives were found.

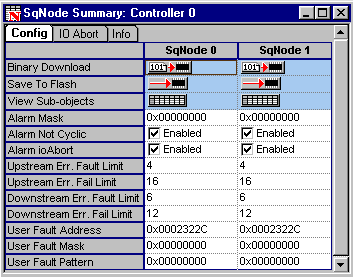

This window provides the node configuration for each drive installed on the system. SynqNet will find the drives in the order that they are connected. The hardware setup used for this example had two drives.
