Move a Motor
The final step is to execute a basic move on the motor.
Click on the button to open the Motion Supervisor window and click the Actions tab. If the buttons are faded out (shown below), first map the Axes.
Click on the Config tab and Shift + Lt-Click on the Axis Map button. Then click Yes, to configure the default mapping.

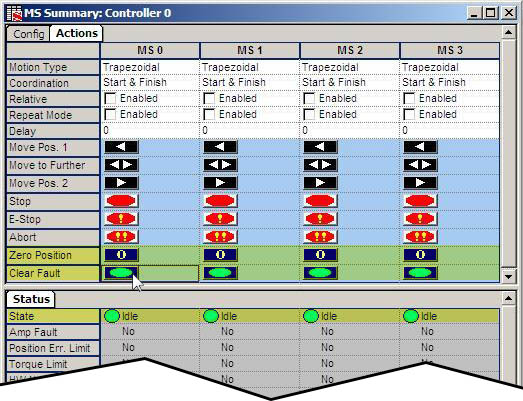

Under the Actions tab, click the Zero Position button and click the Clear Fault Button. Be sure the State under the General Status tab shows Idle.
Click on the Move Pos. 2 button , and the command will be executed on the motor (Axis 0) and move 10000 counts to Position 2.
Click on the Move Pos. 1 button , and the motor will move 10000 counts back to Position 1.

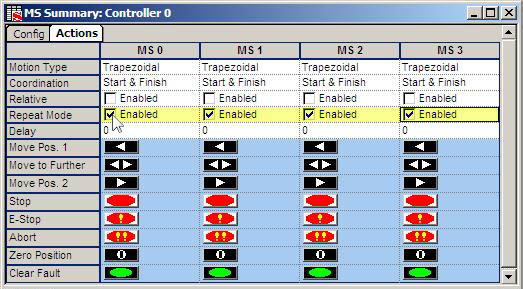

To continuously move back and forth from Position 1 to Position 2, check the Enabled check box.
Click the Move Pos. 2 button , and the motor will move back and forth from Position 2 to Position 1.
Motion Console has successfully moved a motor using SynqNet.
| | |
