Quick Start Guide
QMP-SynqNet Controller

Install the MDK Software

  The MDK software can be accessed from the MDK InstallShield CD-ROM. By default, all of the files are copied to the following directory: C:\Program Files
(x86)\MEI\MDK\04.02.xx\. The InstallShield will install the following features and libraries:
      • Motion Programming Interface (MPI)
      • Motion Console
      • Motion Scope
      • VM3
      • On-line Documentation

Installation Steps

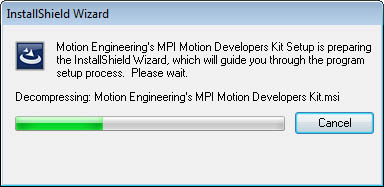

Step 1
Click on the WinNTSetup.exe or Win32Setup.exe file.

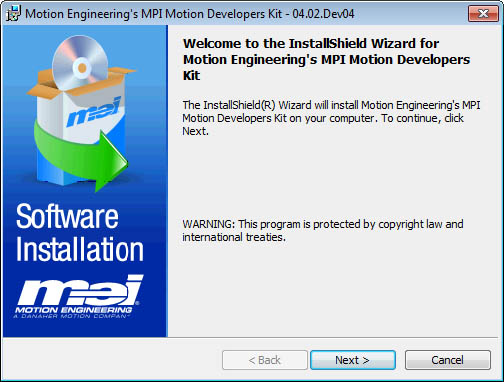

Step 2
The InstallShield Wizard for Kollmorgen's MPI-QMP Motion Developer's Kit displays. Click Next.

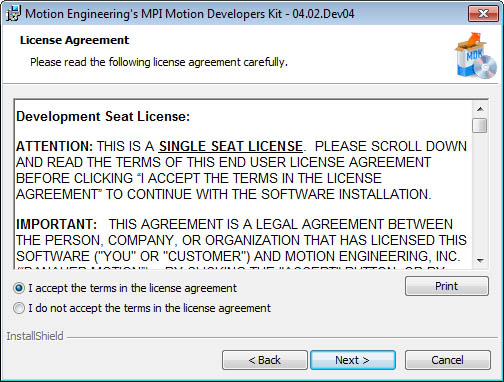

Step 3
Read and accept the terms of the license agreement before continuing the installation. Select
“I accept the terms in the license agreement” and click Next.

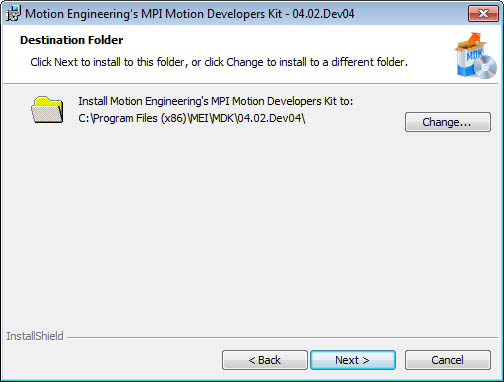

Step 4
The default directory for the installation of all files and settings is C:\Program Files
(x86)\MEI\MDK\04.02.xx\. We recommend not changing the default installation directory
unless directed to do so by an applications engineer. Click Next.

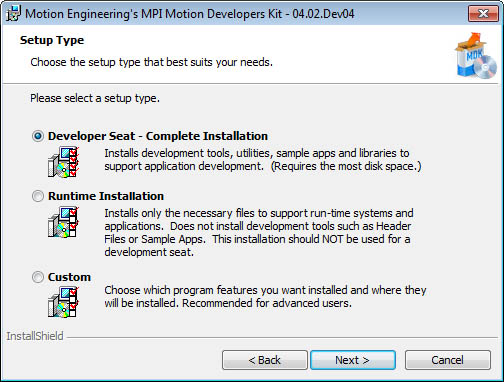

Step 5
Select the appropriate setup type for this environment and click Next.

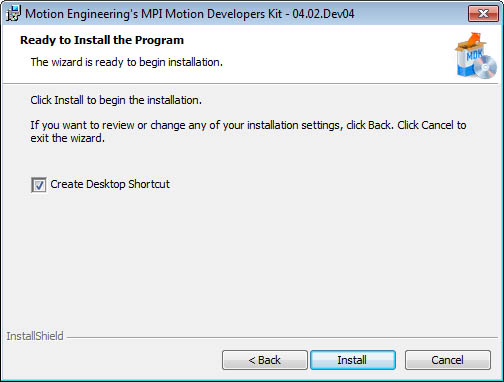

Step 6
The InstallShield is now ready to install all of the files and settings. Click Install.

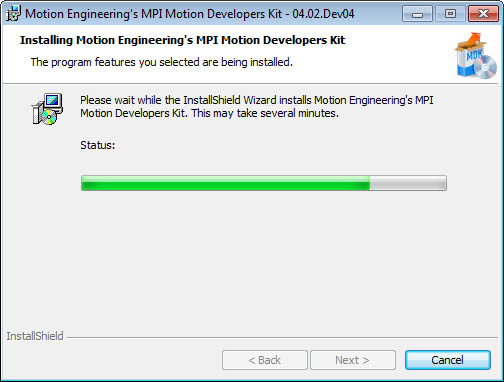

A series of windows displays the progress of the installation.

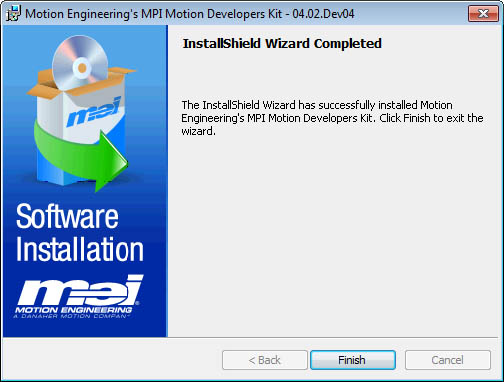

Step 7
The following confirmation window displays if the installation was successful. Click Finish to
exit the InstallShield.
