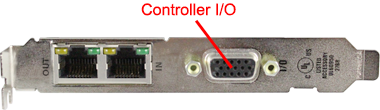

QMP-SynqNet-PCI:

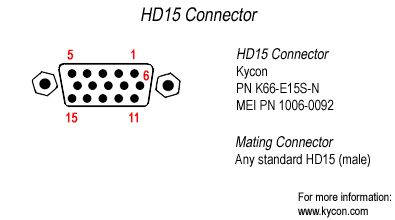

HD15 Connector

See Also: General Controller I/O Specifications | Connect Controller I/O

Pin
Signal
1
OPTO_A_OUT
2
OPTO_B_OUT_RTN
3
OPTO_D_IN
4
OPTO_E_IN_RTN
5
XESTOP
6
OPTO_A_OUT_RTN
7
OPTO_C_OUT
8
OPTO_D_IN_RTN
9
OPTO_IN_F
10
XESTOP_RTN
11
OPTO_OUT_B
12
OPTO_C_OUT_RTN
13
OPTO_E_IN
14
OPTO_F_IN_RTN
15
SHIELD



Cable Accessory

MEI offers the following cable accessory: C001-0037

STC Accessory

Phoenix Contact offers the following STC accessory:

Phoenix Contact
PN
: 22 81 13 1
Part Type: FLKM-D15 SUB/S
Description: VARIOFACE module, with screw connection and D-Subminiature pin strip, for mounting on NS 35/7.5 or NS 32, 15-pos.
