General Controller I/O Specifications

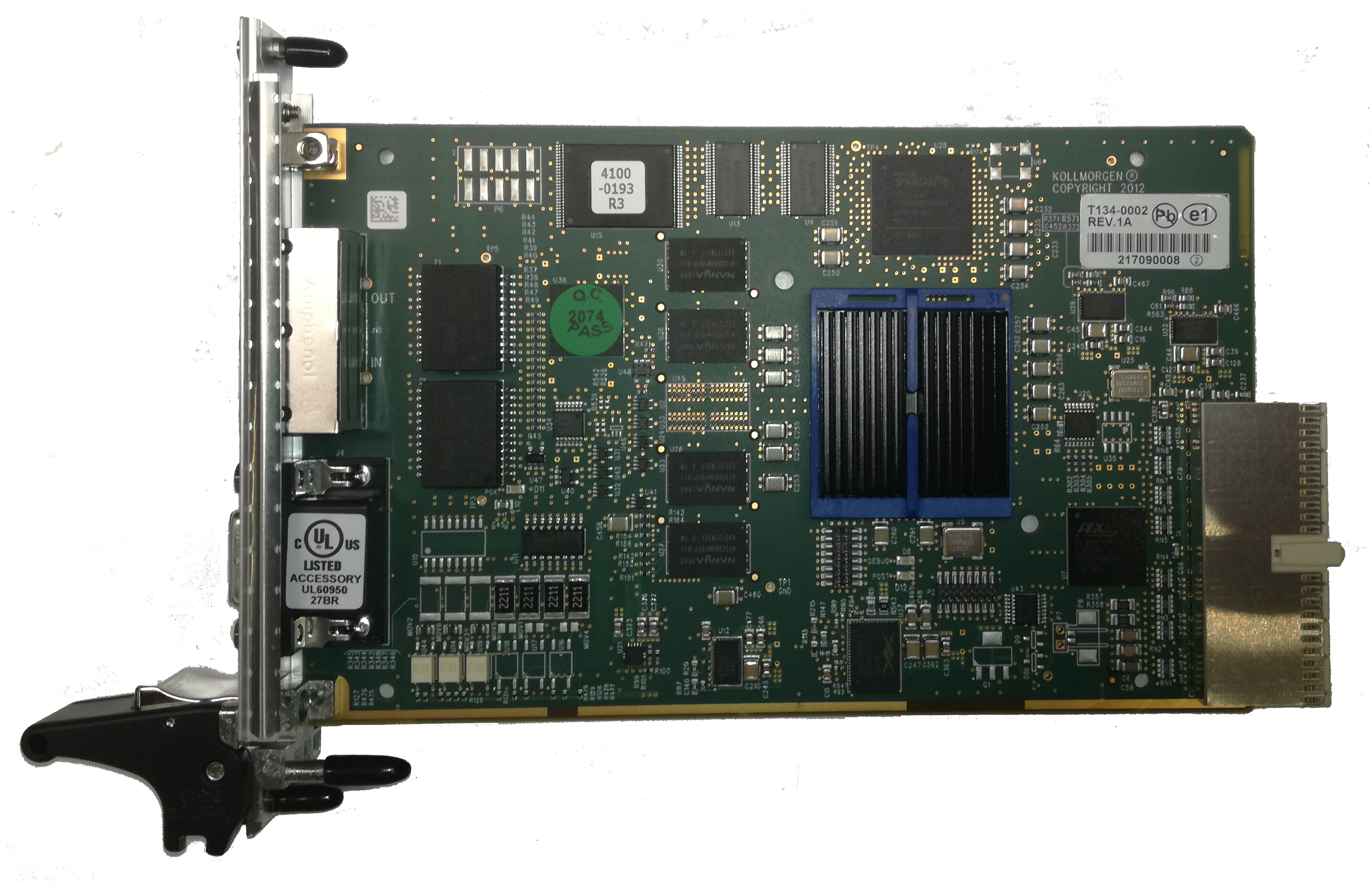

QMP-SynqNet Controller
	These specifications are valid for the QMP-SynqNet-PCI controller. These specifications were measured at 25°C.
	QMP-SynqNet-PCI-RJ-1200 PN: T131-0001	QMP-SynqNet-PCI-GB-cPCI-1200 PN: T134-0001 QMP-SynqNet-PCI-GB-cPCI-800 PN: T134-0002

1 XESTOP Input and 3 Opto Inputs

Specifications:
Input High Voltage (ON): Min 4.0V; Max 28.8V
Input Low Voltage (OFF): Max 0.8V
Input High Current: Max 15 mA
Input Low Current: Max 1 mA @ 0.8V
Input Impedence: Min 2300 Ohms

3 Opto Outputs

Specifications:
Output Max Sink Current: 50mA
Output Low Voltage @ Io=50mA: Max 1.0V
Collector Power Dissipation: 150mW
