Opto Input (I/O) Voltage

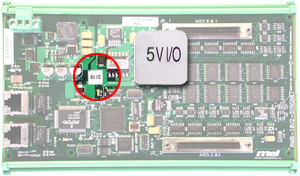

The RMB-10V2-SynqNet supports two types of Opto Input Voltages: 5V or 24V. To verify which type of voltage an RMB-10V2-SynqNet supports, check the I/O sticker on the PCB.

NOTE: This does not apply to the User I/O Inputs. Since the Opto-isolated User I/O can be inputs or outputs, an external current limiting resistor is required. For details, see the Opto-isolated User I/O section.

See Also: General XMP I/O Specifications
