Connect System I/O

RMB-10V2-SynqNet System I/O includes:

Dedicated Inputs per Axis: (opto-isolated)

Node Disable Input (opto-isolated)

User I/O (opto-isolated)

Limit and Home Sensors

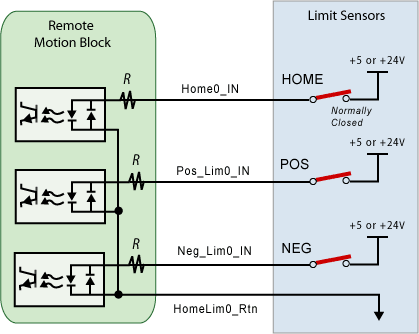

Common Ground Configuration

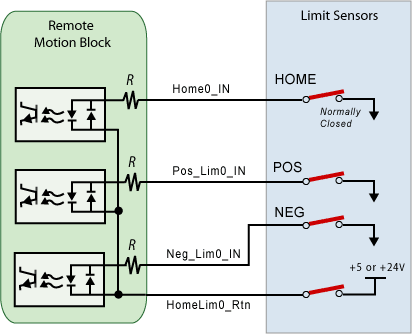

Common Vuser Configuration

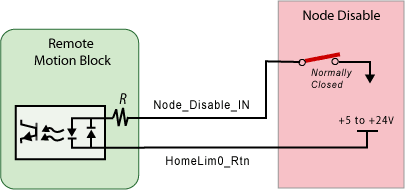

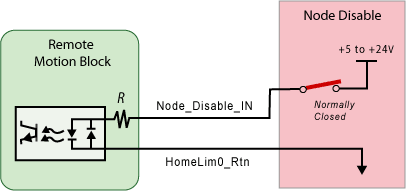

Node Disable

Pull-up Configuration

Pull-down Configuration

Opto-isolated User I/O

There are four (4) user I/Os per RMB-10V2, and each user I/O is individually configurable as input or output. Software configuration is not required. The polarity of external wiring determines whether it's an input or output.

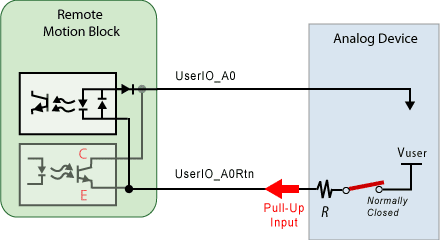

User I/O Input Pull-up Configuration

WARNING!
A resistor must be supplied by the digital device. Connecting the RMB's bi-directional opto pins to a power supply will blow the circuit.

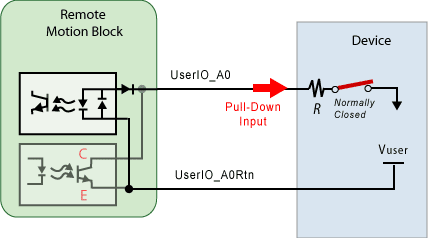

User I/O Input Pull-down Configuration

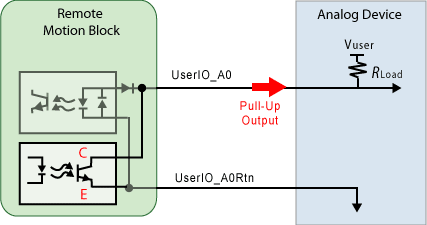

User I/O Output Pull-up Configuration

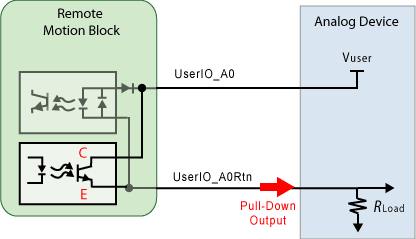

User I/O Output Pull-down Configuration

Connecting RMB-10V2 Transceiver I/O

There are twelve (12) Transceiver I/O per RMB-10V2. Each bit is software configurable and can be individually configured as an input or output.

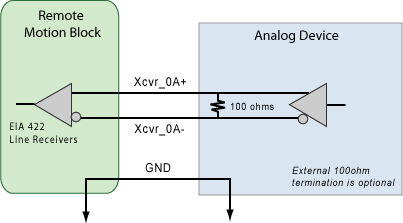

Differential Input Configuration

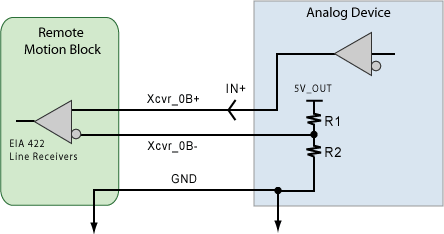

Single-ended Input Configuration

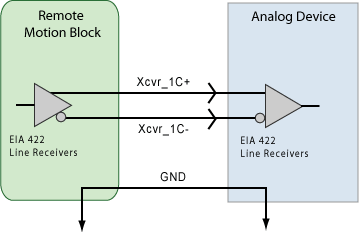

Differential Output Configuration

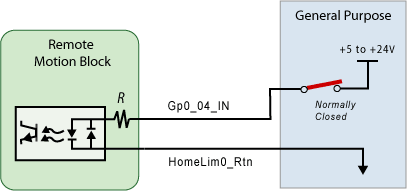

General Purpose

Pull-up Logic Configuration

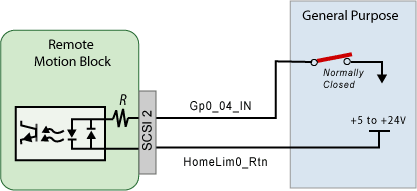

Pull-down Logic Configuration
