LEDs: RMB-10V2-SynqNet

See Also: Node LEDs | Node LED Details

In addition to having the regular LEDs (1-6) of other SynqNet nodes, the RMB-10V2-SynqNet also has LED7. The function of LED7 is described below.



Node LEDs on the
RMB-10V2-SynqNet

  •  LED1 - Link Activity
  •  LED2 - Node State
  •  LED3 - Link Activity
  •  LED4 - Repeater
  •  LED5 - FPGA
  •  LED6 - FPGA Boot Status
  •  LED7 - Node Alarm (red)

For more information about the function of LEDs 1-6, please see Node LED Details.

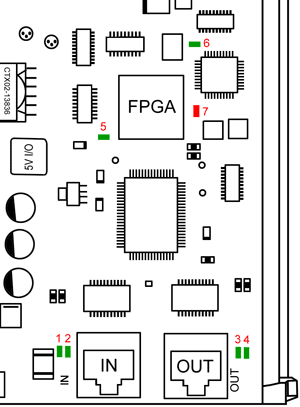

RMB-10V

The RMB-10V2-SynqNet is shown above.

Node LED Table
LED#
Name
Meaning
LED7
Node
Alarm
ON = node alarm is on.
OFF = node alarm is off. See Node Alarm.

For more information about the function of LEDs 1-6, please see Node LED Details.
