TSIO-8002; Field Power Distributor

Field Power Distributor 10A
(Arbitrary 5Vdc, 24Vdc, 48Vdc, 110Vac, 220Vac)

  • The module is an expansion field power distributor.

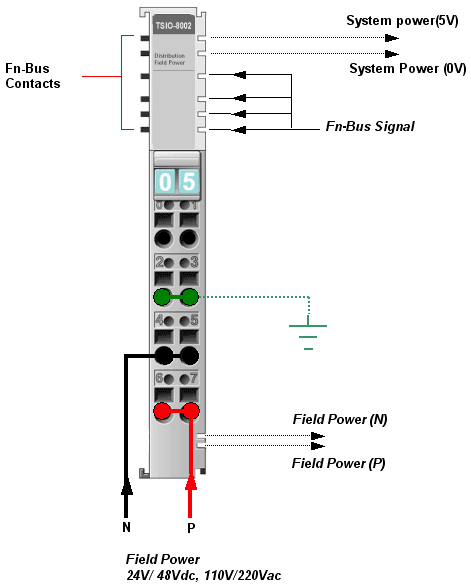

  • If you have a slice I/O setup that has slices with different voltage requirements, you can use the TSIO-8002 to change the distributed voltage. See diagram below.

  • See System Power, Field Power, Shield

  • Used for Field Power isolation. System power is not affected and is passed through from the network adapter.





Input Specification
Inputs Voltage Range 11 ~ 28.8Vdc
System Power Input Voltage Normal Input 24Vdc
Field Power Input Voltage Arbitrary 5Vdc, 24Vdc, 48Vdc, 110Vac, 220Vac
Fn-Bus Output Voltage 5Vdc, 1A
Field Power Connector Current Max. 10A
Operating Temperature –20 to +60°C
Storage Temperature –45 to +85°C

Output Specification
Logic Power Dissipation Expansion Power Supply
I/O Cables Max. AWG 14
Weight 70g
Module Size 67mm x 12mm x 95mm
(H x W x L)

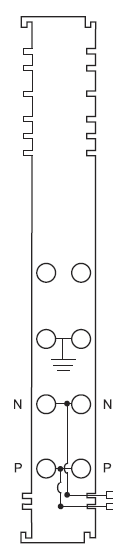

Pinouts

Pin No.
Description
0
 No Connect
1
 No Connect
2
 Chassis Ground
3
 Chassis Ground
4
 Field Power (Arbitrary)
5
 Field Power (Arbitrary)
6
 Field Power (Arbitrary)
7
 Field Power (Arbitrary)

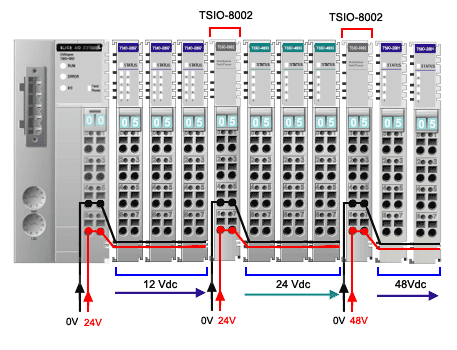

Wiring Example

In the wiring example below, the TSIO-8002 is used to change the output voltage of the field power contacts from 12Vdc to 24Vdc to 48Vdc. The addition of a TSIO-8002 slice does not generate new system power. System power is passed through from the network adapter across the Fn-Bus contacts.
