SQIO-DIN32DOUT32: Outputs

Characteristics | Application | Pinouts

Characteristics


  • The digital outputs are arranged in banks of 8.

  • Each bank has its own common connection and each output bank is collectively isolated from the other output banks.

  • Outputs have free-wheeling diodes and can therefore drive inductive loads.

  • Outputs can be connected for current sourcing only.

  • The output rating cannot be increased by parallel connection.

  • There is no short-circuit protection.

  • Direct drive of pneumatic solenoids and relays of an appropriate rating.

  • If a node or network has multiple SQIO-DIN32DOUT32 modules, the output update process take place simultaneously on all board modules.

Parameter
Value
Maximum output current
30mA
Output voltage drop @ full load
+1.3V

Application

The digital inputs are arranged in 4 banks of 8. Each bank has its own common connection. The inputs can be configured for either current sinking or current sourcing.

Current Sourcing

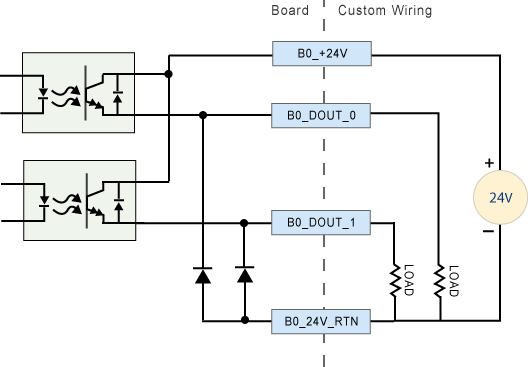

Diagram below shows current sourcing connection to an output bank (only two outputs shown).


Connection to an output bank (only two outputs shown)



Pinouts

For pinout information, see the following pages.

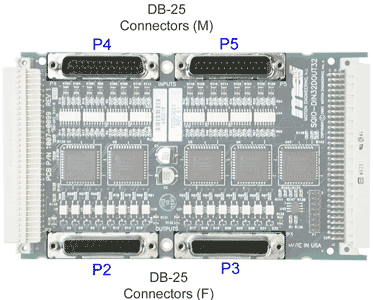

Inputs: P4, P5
Outputs: P2, P3
