SQIO-DIN32DOUT32: Inputs

Characteristics | Application | Pinouts

Characteristics


  • The digital inputs are arranged in banks of 8.
  • Each input bank has its own common connection and is collectively isolated from other input banks.
  • Inputs can be connected as either current sinking or current sourcing on a per-bank basis.
  • The input update process will take place simultaneously on all board modules.
  • Input Voltage Range: 5 - 24V ±20%
    Inputs will be turned ON by a valid voltage. (i.e. 4-28.8V)

Parameter
Value
Input impedance
2300Ω
Minimum ON voltage
4V
Maximum OFF voltage
0.8V
Deadband (typical)
450mV
Maximum input voltage
28.8V

Application

The digital inputs are arranged in 4 banks of 8. Each bank has its own common connection. The inputs can be configured for either current sinking or current sourcing.

Current Sinking

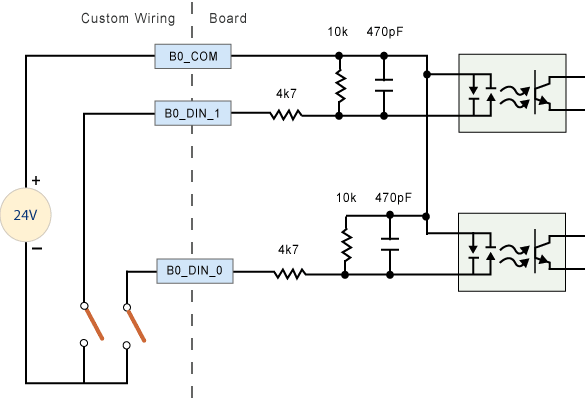

Diagram below shows current sinking connection to an input bank (only two inputs shown).


Current sinking connection to an input bank (only two inputs shown)



Current Sourcing

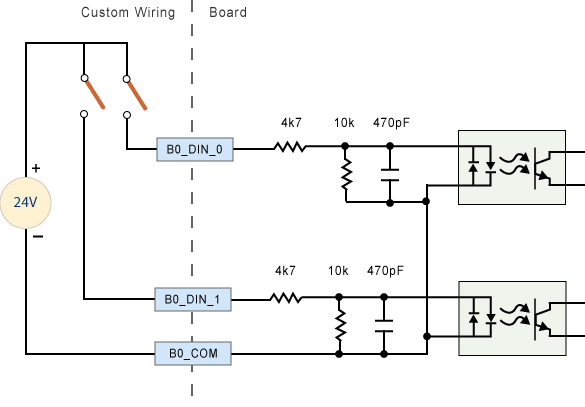

Diagram below shows current sourcing connection to an input bank (only two inputs shown).


Current sourcing connection to an input bank (only two inputs shown)



Pinouts

For pinout information, see the following pages.

Inputs: P4, P5
Outputs: P2, P3
