S200: S11,S12
SynqNet ID Switches

The SynqNet ID switches can be used to help distinguish and differentiate a drive on the network by assigning a unique ID to the drive.

To set a SynqNet ID to an S200 drive, turn the S11 LSB (Least Significant Bit) and S12 MSB (Most Significant Bit) switches to a desired letter/number combination.

The SynqNet ID can then be read using the following utilities:

Motion Console

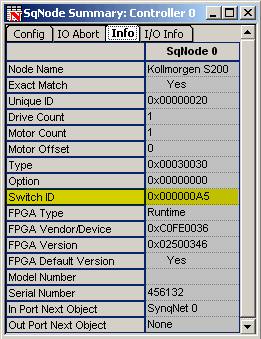

In the SqNode Summary window, under the Info tab, the SynqNet ID is displayed in the Switch ID field. See screenshot below.

SYNQNET ID
     S11 = 5
     S12 = A

Version.exe Utility

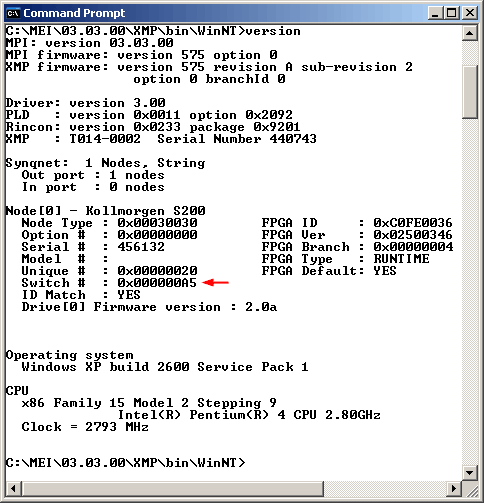

The version.exe utility also displays the Switch ID field. See screenshot below.

SYNQNET ID
     S11 = 5
     S12 = A
