TSIO-2002; Digital Input
4 Channels of 5Vdc Sourcing Input
|
|
- The module has 4 Channels of source type input. It receives
signals with values of 5Vdc.
- The digital input module receives the control signal from digital
field devices. (sensor, etc)
- The module has 5 status LEDs.
(1- network status, 4- field device status)
- A photocoupler is used for electrical isolation between the
controller and external field connections.

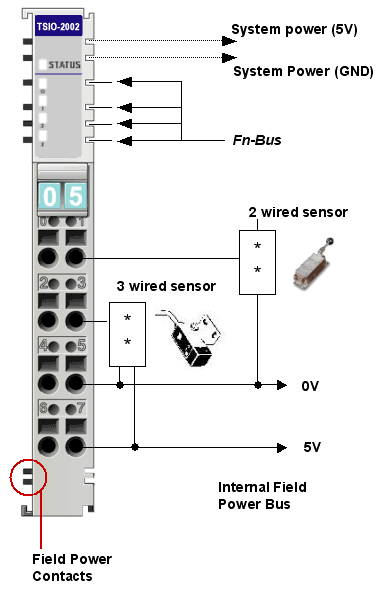

- The module has 2 wires. A 3-wire sensor (proximity, etc) can
also be connected.
- NOTE:
For MPI versions prior to the 03.04.00, the TSIO-2002 will operate correctly, but the product identification and model name will not be properly displayed.
|
| Input Specification
|
| Inputs per module |
4 channels of non-isolated, source type
|
| LED Indicators |
4 green for input status
1 green/red for slice status |
| ON-state Voltage Range |
5Vdc nominal
Min. 2.4Vdc
Max. 5.5Vdc |
| OFF-state Voltage Range |
Max. 0.8Vdc |
| ON-state Current |
Max. 4.8mA / channel @ 5.5Vdc |
| Input Signal Delay |
OFF to ON: 0.5ms Max.
ON to OFF: 0.5ms Max. |
| Nominal Input Impedance |
Typ. 1K Ohm |
| Filtering Time |
Typ. 1.5ms |
| General Specification |
| ID |
0x00020041 |
| Logic Power Dissipation |
35mA Max. @ 5.0Vdc |
| Isolation |
I/O to Logic: Photocoupler
isolation
Isolation Voltage: 1250Vrms/Vac |
Field Power
(Internal Power Bus) |
Supply Voltage: 5Vdc nominal
Voltage Range: 4.5 ~ 5.5Vdc |
| I/O Cables |
Max. AWG 14 |
| Weight |
70g |
| Module Size |
99mm x 12mm x 70mm
(H x W x L) |
| Environmental Requirements |
See Environment
Requirements |
Pinouts
 |
|
Pin No.
|
Description
|
|
0
|
Input Channel 0 |
|
1
|
Input Channel 1 |
|
2
|
Input Channel 2 |
|
3
|
Input Channel 3 |
|
4
|
Field Ground (0V) |
|
5
|
Field Ground (0V) |
|
6
|
Field Power (+5V) |
|
7
|
Field Power (+5V) |
|
Parameters
This slice does not support any parameters.
See Also: Slice Parameters
Memory
This slice does not support any memory registers.
See Also: Slice Memory
I/O Data
| |
Input Data |
Bit No. |
Bit 7 |
Bit 6 |
Bit 5 |
Bit 4 |
Bit 3 |
Bit 2 |
Bit 1 |
Bit 0 |
Byte 0 |
Not Used |
CH3 |
CH2 |
CH1 |
CH0 |
|
Slice Status LED
|
State
|
LED
|
Description
|
Not Powered,
Not Initialized |
OFF |
The slice is either not powered or has not been initialized. |
| Normal Communication |
Green
|
Slice to network adapter communication is operating normally. |
| Communication Ready |
Flashing Green |
Slice to network adapter communication is ready to be started. |
| Communication Fault |
Flashing Red |
Slice to network adapter communication has a fault.
|
| Slice Fault |
Red |
The slice has a fault.
|
Channel Status LED
The TSIO-2002 has 4 Channels.
|
State
|
LED
|
Indicates
|
| Signal OFF |
OFF |
Normal Operation (Active) |
| Signal ON |
Green
|
Normal Operation (Inactive) |
|
